Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
Specifications
Brand Name :
GME
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 pcs per Month
Delivery Time :
7~10 working days
Packaging Details :
cartons， pallet
Power Source :
Electric
Dimension :
Customized
Voltage :
12V/24V/110V/220V/230V...
Sheath material :
Stainless Steel or Nickel
Minimum ID :
25mm
Style :
straight or coil
Lead wire :
copper, , fiberglass silicon
Thermocouple type :
J or K type
Terminal :
Axial, Radial & Tangential
Power :
100W, 150W,180W,
Description

220v 230v 240v Far Infrared Ceramic Heater for Thermoforming with thermocouples

Description:

110v 120v 220v 230v 240v Far Infrared Ceramic Heater for Thermoforming operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most popular infrared radiant emitter on the market.

A range of aluminised steel reflectors are also available to ensure the maximum amount of infrared radiation is reflected forward to the target area.

Specification:

Product Name
110v 120v 220v 230v 240v Far Infrared Ceramic Heater for Thermoforming
Color
white, yellow, black, etc
Power
125-1500W
Usually size
245 x 60, 245 x 80, 122 x 122, 122 x 60, 80 x 80,60 x 60mm
Shapes
Trough, Hollow and Flat
Voltage
110-440volts
Thermocouple
Optional, K or J Type
Operating Temperature
300C - 700C

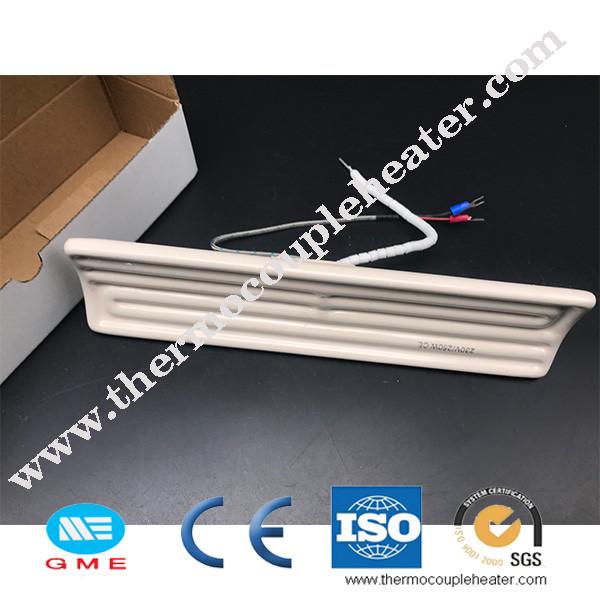

Size:245*60mm

Type:Trough, Hollow and Flat

Vottage :120/220/230/240/480V

Wattage :125-1000W

colour :white, yellow, black, etc

TC :Optional, K or J Type

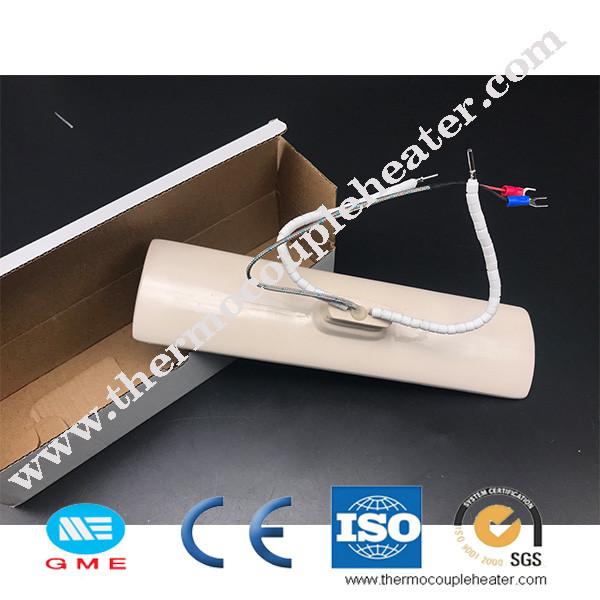

Size:122*60mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-500W
colour :white, yellow, black, etc
TC :Optional, K or J Type

Thermoforming Far Infrared Ceramic Heater 220v 230v 240v With Thermocouples
