Specifications
Brand Name :
GME
Place of Origin :
China
MOQ :
500 meters
Payment Terms :
L/C, Western Union, T/T, Paypal
Supply Ability :
1,000,000 meters per month
Delivery Time :
5-15 days
Packaging Details :
Standard exporting package
Type :
S
Insulation Material :
Fiberglass-700℃
Jacket Material :
Fiberglass-700℃
Dimension :
12-32AWG, customized
Temperature range :
Up to 700℃
Color :
ANSI standard, or customized
Application :
Ultra-high temperature industrial processes
Description

Thermocouple Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃

1. Brief Introduction

Thermocouple compensation cables are used to extend signals from the sensor to instrumentation. Unlike true extension cables, which use the same thermocouple alloys and can be used to make thermocouples, compensation cables are made from cheaper alloys that approximate the thermoelectric properties of extension cables over a limited temperature range. While less accurate and suitable only for ambient temperatures, they offer a cost-effective alternative for signal transmission.

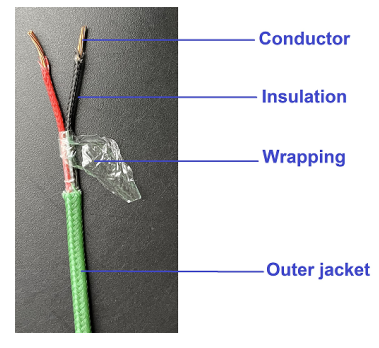

2. Construction

Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃

3. Technical data:

Conductor
Type S
Material + Cu / - CuNi
Constructure Multi-stranded
Number of Strands / Strand Diameter (mm) 2 x 7 / 0.3±0.02mm
Section Area (mm2) 2 x 20AWG approx. 0.5mm²
Insulation
Material Fiberglass-700℃ braided
Color + Black, - Red
Number of Pairs 1 pair
Laying In parallel
Wrapping
Material PVC film, to prevent insulation staining
Color Transparent
Outer Jacket
Material Fiberglass-700℃ braided
Color Green
Overall
Working temperature range Up to 700℃
Meters per coil 100 meters per roll

4. Order Code Example

When asking for quotations, customers are required to provide order specifications, including

- Type

- Working temperature

- Conductor Size

- Constructure

- Color Code

- Order Quantity

Example:

Thermocouple Compensating Cable Type S Special Fiberglass Insulation Temperature Resistance 700℃
