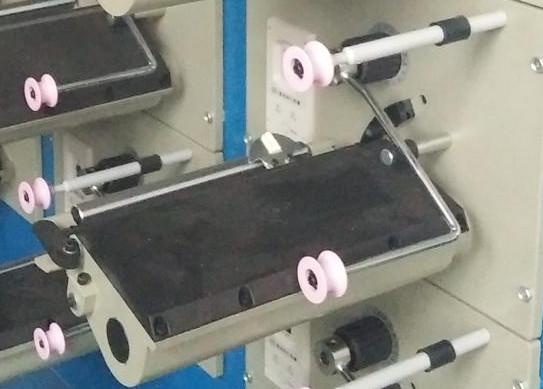

Ac Motor Automatic Yarn Ball Winding Machine 380V 220V Safety Operation
Ac Motor Automatic Yarn Ball Winding Machine 380V 220V Safety Operation
Specifications
Brand Name :
KR
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SPINDLE
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 spindles per month
Delivery Time :
15 work days
Packaging Details :
wooden box
Name :
Ball Winding Machine
Yarn diameter (inches) :
0.009
Voltage :
380V/220V
Condition :
New
Number of head :
Single Head,Double Heads,more heads
Power :
can be customized
Description

Ac Motor Automatic Yarn Ball Winding Machine 380V 220V Safety Operation​

Description:

1. Quickly set the winding tension setting of the yarn diameter of 0.009-0.025 through the touch screen PLC, and can store the winding scheme.

2. Standards for winding forming and raw material cylinders:

Applications: Products are used in chemical fiber (carbon fiber, high molecular weight polyethylene, etc.), construction, military, water purification, medicine, electronics, environmental protection, water treatment (tap water, sewage treatment), water conservancy projects and other fields. Water treatment: boiler water treatment in electroplating plant, wire-cut cooling water treatment, winding of wire-wound filter for water treatment hollow film; other: circuit board, dipping line, electronic component packaging, air filter film , edible casings, photovoltaic guides and other special requirements of winding.

Minimum Maximum
Outer diameter target tube (mm) 180mm 250mm
Target tube weight (kg) 6kg 10kg
Outer diameter non-metering bobbin (mm) 110mm 200mm
Non-metering bobbin weight (kg) 4kg 8kg
Maximum horizontal length 300mm 340mm, paper tube
Winding speed 200 350
Coated yarn material Glass fiber and polyester fiber
Yarn diameter (inches) 0.009 0.025
Winding tension 22 33

3. main configuration

Component configuration
Panel ordinary aluminum alloy panel
Housing 5"-80" custom housing
Spindle 5 inch - 80 inch custom shaft
Brake blackening
Limit grade 80-330mm
Reciprocating rod 5 inch - 80 inch custom
Frequency converter SAJ
Switch Schneider
