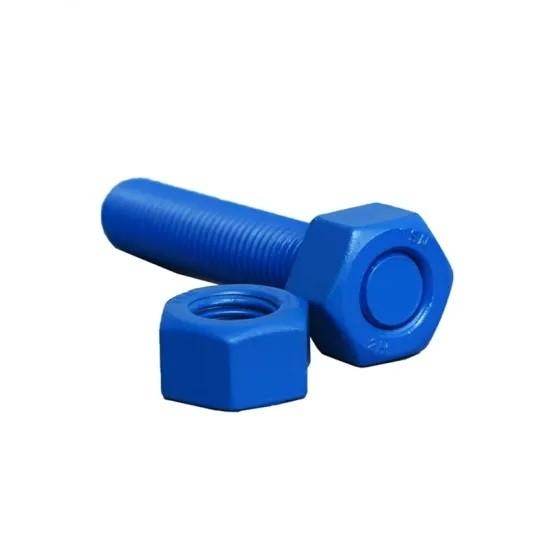

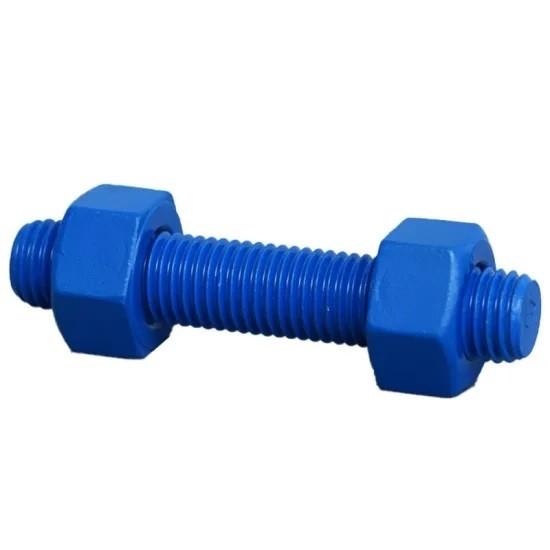

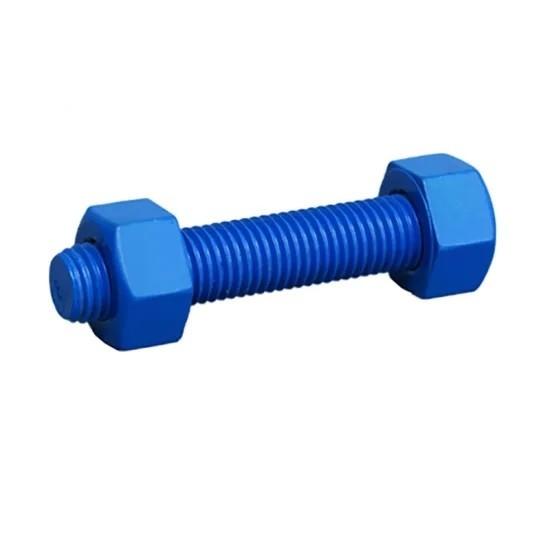

ASTM A320 L43 fully threaded PTFE coated stud bolt for flanges

In a flanged connection the size, length, diameter and number of bolt holes is dependent of flange type and pressure class of flange.
Stud Bolt grades and sizes are defined by industry standards in ASTM A193 and ASME B16.5 standards. Bolts are usually defined as a threaded fastener intended to be mated with a nut, while a screw can engage either preformed or self-made internal threads,A stud is an externally threaded headless fastener. One end usually mates with a tapped component and the other with a standard nut.

ASTM A320 Grades
L7 :13% Chromium Ferritic Steel
L7M :Chromium Molybdenum Alloy Steel, Quenched & Tempered
L43 :Chromium Molybdenum Alloy Steel, Quenched & Tempered
B8 :AISI 304 Stainless Steel, Carbide Solution Treated
B8 :Class 2 AISI 304 Stainless Steel, Carbide Solution Treated and Strain Hardened
B8M :AISI 316 Stainless Steel, Carbide Solution Treated
B8M :Class 2 AISI 316 Stainless Steel, Carbide Solution Treated and Strain Hardened
B8T :AISI 321 Stainless Steel, Carbide Solution Treated
B8T :Class 2 AISI 321 Stainless Steel, Carbide Solution Treated and Strain Hardened
B8C :AISI 347 Stainless Steel, Carbide Solution Treated

Type :
Full threads, Partial Threads, and customized as per requirements.

SIZE :
Nom Dia: ¼ to 4″ [6-100 mm]
Tailor made if required.
Length: As Per Standard or Upto any Length

SPECIFICATION / STANDARD :ASTM / ASME / BS / DIN / BS EN ISO

MATERIAL :C.S., M.S., Alloy Steel, Ferritic & Austenitic Stainless Steel
THREADS :UNC, 8UN, UNF, Metric Coarse & Fine Series.
SURFACE FINISH :
Self Color, Hot Dip Galvanized, Electro Galvanized, Di-Chromated, P.T.F.E. Coated or any other as per order requiremen

Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

Supply Ability:1000 tons per month

MinimumOrder:200kgs for each specification

Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

Payment :T/T, L/C , D/A , D/P , Western Union,etc

Market:South&north Amrica/Europe/ etc.
