Hardened HRC 26-45 Steel Black Finish 5/8 Inch Structural Flat Washer F436
Hardened HRC 26-45 Steel Black Finish 5/8 Inch Structural Flat Washer F436
Hardened HRC 26-45 Steel Black Finish 5/8 Inch Structural Flat Washer F436
Hardened HRC 26-45 Steel Black Finish 5/8 Inch Structural Flat Washer F436
Specifications
Brand Name :
PM
Model Number :
M6-M100, 1/4"-4"
Certification :
ISO
Place of Origin :
CHINA
MOQ :
20PCS
Price :
USD 0.001-2 PER PCS
Payment Terms :
L/C, T/T
Supply Ability :
500tons per month
Delivery Time :
15-25DAYS PER CONTAINER
Packaging Details :
25kgs/carton and 36 cartons on standard export wooden pallets
Standard :
ASTM F436
Size :
5/8"
Surface :
Black , Black Oxide
Mark :
Manufacturer's ID and F436
Sample :
5pcs sample free
Hardness :
26-45HRC
Type :
Round
Product name :
Hardened HRC 26-45 steel black finish 5/8 inch Structural Flat washer F436
Description

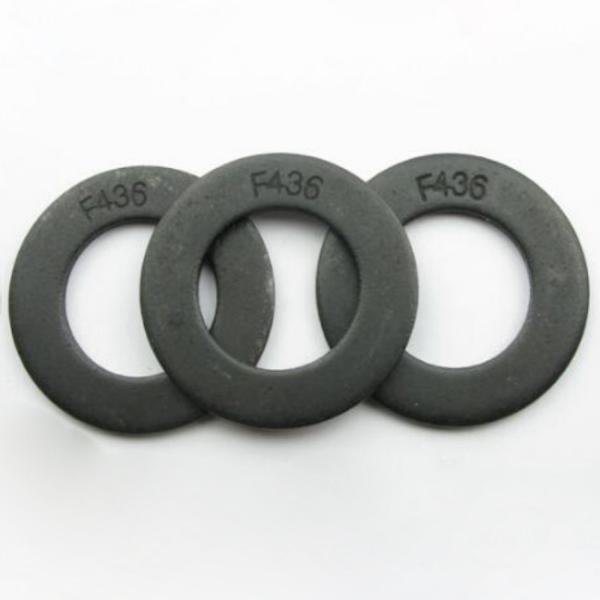

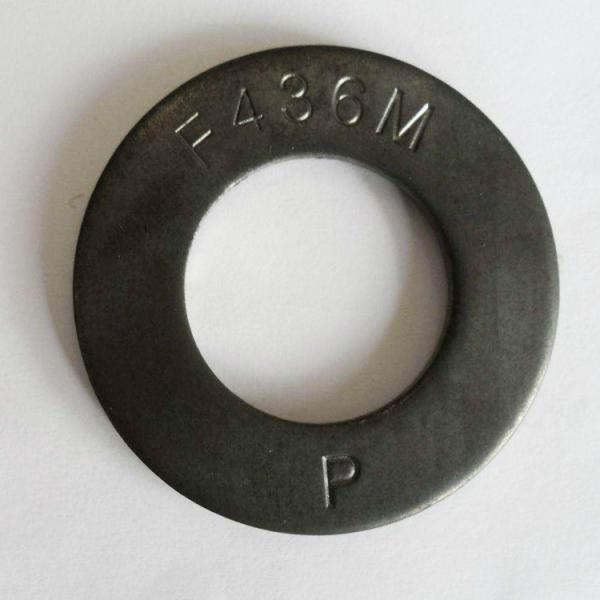

Hardened HRC 26-45 steel black finish 5/8 inch Structural Flat washer F436

A washer is a thin plate (typically disk-shaped, but sometimes square) with a hole (typically in the middle) that is normally used to distribute the load of a threaded fastener, such as a bolt or nut. Other uses are as a spacer, spring (Belleville washer, wave washer), wear pad, preload indicating device, locking device, and to reduce vibration (rubber washer). Washers often have an outer diameter (OD) about twice their inner diameter (ID), but this can vary quite widely.

Hardened HRC 26-45 Steel Black Finish 5/8 Inch Structural Flat Washer F436

SIZE: 1/4" - 4", M6 -M100 .

STANDARD: ASTM F436/F436M

FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.

Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

Supply Ability:1000 tons per month

MinimumOrder:200kgs for each specification

Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

Payment :T/T, L/C , D/A , D/P , Western Union,etc

Market:South&north Amrica/Europe/ etc.

F436 STYLES
Style Description Sizes
Circular Round SAE pattern 1/4" - 4"
Beveled Square or rectangular with a beveled 1 to 6 ratio surface. For use with American standard beams and channels. 1/2" - 1-1/2"
Clipped Circular or beveled 1/2" - 1-1/2" beveled
1/4" - 4" circular
Extra Thick Circular washers with a thickness of 5/16" 1/2" - 1-1/2" circular

F436 MECHANICAL PROPERTIES
Plain Finish Hot Dip Galvanized
Rockwell Hardness 38 to 45 HRC Rockwell Hardness 26 to 45 HRC

F436 CHEMICAL PROPERTIES
Element Type 1 Type 3
Phosphorous, max 0.04% 0.04%
Sulfur, max 0.05% 0.05%
Silicon - 0.15% - 0.35%
Chromium - 0.45% - 0.65%
Nickel - 0.25% - 0.45%
Copper - 0.25% - 0.45%

Flat Washer Sizes

Inner Diameter (ID)

Outer Diameter (OD)

Washer Thickness

1/2"

0.531"

1.063"

0.177"

5/8"

0.688"

1.313"

0.177"

3/4"

0.813"

1.468"

0.177"

7/8"

0.938"

1.750"

0.177"

1"

1.063"

2.000"

0.136" - 0.177"

1-1/8"

1.188"

2.250"

0.136" - 0.177"

1-1/4"

1.375"

2.500"

0.136" - 0.177"

1-3/8"

1.500"

2.750"

0.136" - 0.177"

1-1/2"

1.625"

3.000"

0.136" - 0.177"

1-3/4"

1.875"

3.375"

0.280"

3"

3.125"

5.500"

0.340"
