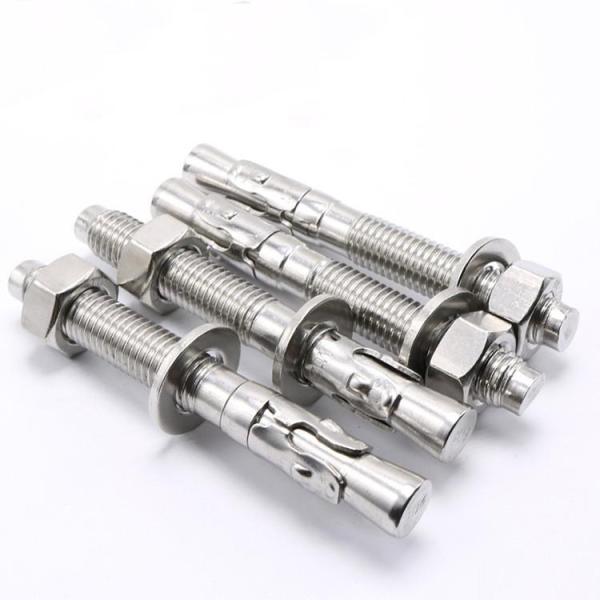

UNC Thread M18 SUS316 Stainless Steel Screw Expansion Anchors
UNC Thread M18 SUS316 Stainless Steel Screw Expansion Anchors
UNC Thread M18 SUS316 Stainless Steel Screw Expansion Anchors
UNC Thread M18 SUS316 Stainless Steel Screw Expansion Anchors
UNC Thread M18 SUS316 Stainless Steel Screw Expansion Anchors
UNC Thread M18 SUS316 Stainless Steel Screw Expansion Anchors
Specifications
Brand Name :
PM
Model Number :
M6-M18, 1/4"-1"
Certification :
ISO
Place of Origin :
CHINA
MOQ :
100PCS
Price :
USD 0.001-0.86 PER PCS
Payment Terms :
L/C, T/T
Supply Ability :
100 Tons per Month
Delivery Time :
15-25DAYS PER CONTAINER
Packaging Details :
25kgs/carton and 36 cartons on standard export wooden pallets
Material :
Stainless Steel 316
Grade :
A4-70
Size :
1"
Length :
90-305mm
Surface :
Plain
Thread :
UNC
Mark :
Manufacturer's ID and Diameter
Product name :
Stainless steel 316 wedge anchor through bolt
Description

Stainless steel 316 wedge anchor through bolt

Wedge anchors can be removed from concrete in one of three ways: If the hole beneath the anchor is deep enough, simply pound it into the concrete with a hammer. Use a saw or grinding wheel to cut the anchor off just above the surface, and pound the rest flat with a hammer.

Wedge anchors are a non-bottom bearing anchor for use in solid concrete or grout-filled concrete. They come in an variety of diameters and lengths, with material options including Zinc Wedge Anchors, Galvanized Steel Wedge Anchors, and two types of Stainless Steel Wedge Anchors - Type 304 Stainless Steel Wedge Anchors and Type 316 Stainless Steel Wedge Anchors.

SIZE: 1/4" - 1", M6 -M18.

STANDARD: ASME B18.2.6

THREAD: ASME B1.1 , UNC, UNF, CLASS 2A

FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.

Thread Drill hole Length range Thread Drill hole Length range
(mm) (mm) (mm)
M6 6 40-120 1/4" 1/4" ≈45-120
M8 8 50-220 5/16" 5/16" ≈50-145
M10 10 60-250 3/8" 3/8" ≈60-200
M12 12 70-400 1/2" 1/2" ≈70-305
M14 14 80-200 5/8" 5/8" ≈80-305
M16 16 80-300 3/4" 3/4" ≈90-305
M18 18 100-300 1" 1" ≈125-405
M18 20 100-400
M18 24 120-400
