Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
Specifications
Brand Name :
HC
Model Number :
HC686
Certification :
ISO
Place of Origin :
Botou Hebei China
MOQ :
1set
Price :
8000-29000USD
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 sets/month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by carton box
type :
Standard 686mm IBR Sheet Roll Forming Machine
rollers :
16
roller material :
No.45 steel
warranty :
12 month
Description
Standard 686mm IBR Sheet Roll Forming Machine Application
Machine Series

1) wall & roof forming machine

2) step tile. Ridge cap roll forming machine

3) EPS/PU sandwich panel line

4) C&Z purlin machine

5) metal decking forming machine

6) shutter door roll forming machine

7) rain spout forming machine

8) slitting line

9) cut to length line

10) guardrail roll forming machine

Usage Of Roof Panel :

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.

Technical parameter

Suitable material color steel sheet;0.3-07mm,
Working speed about10-25m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 4Kw(Depend on final design)

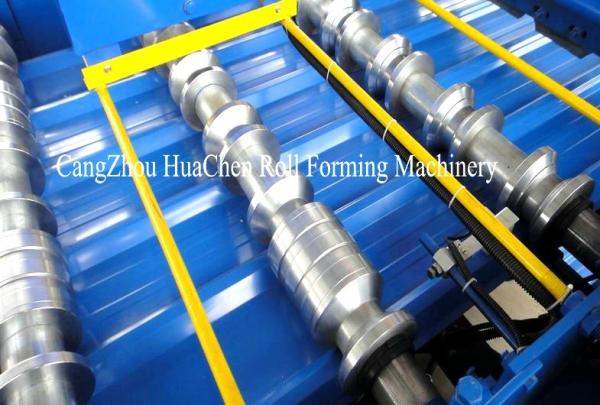

Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System

Standard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control SystemStandard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control SystemStandard 686mm IBR Roofing Sheet Roll Forming Machine With PLC Control System
