0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed
Specifications
Brand Name :
HC
Model Number :
HC90
Certification :
ISO
Place of Origin :
Botou Hebei China
MOQ :
1set
Price :
5000-19000USD
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 sets/month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by carton box
Description

0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed

Steel Shutter Door Slat Roll Forming Machine

0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed0.5 - 1.2mm Thickness Steel Shutter Door Slat Roll Forming Machine 5 - 15 m/min Speed

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 165mm

3. Rollers: 12rows

4. Dimensions: 3.5*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Description:

Steel Shutter Door Slat Roll Forming Machine Main parameter

No.

Main parameter of Steel Shutter Door Slat Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

165mm

3

Rollers

12 rows

4

Dimensions

3500*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.6mm

7

Productivity

15m/min

8

Diameter of the roller

Φ36 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

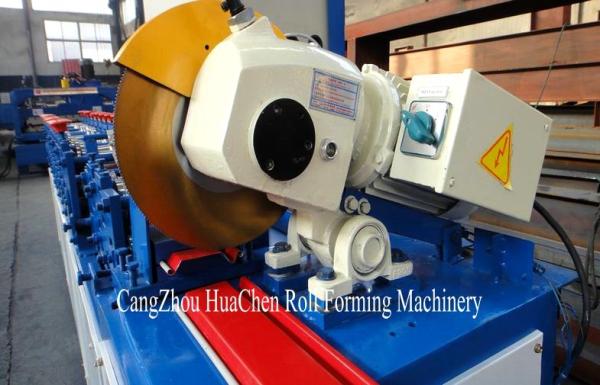

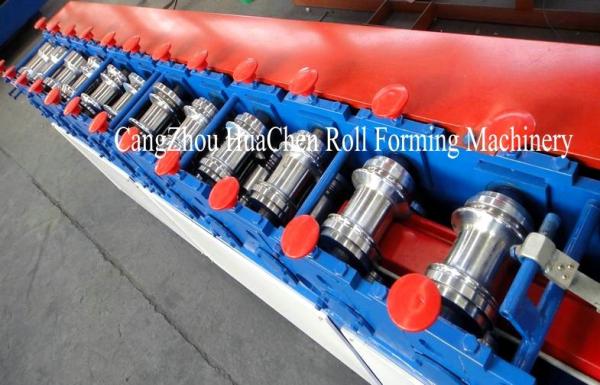

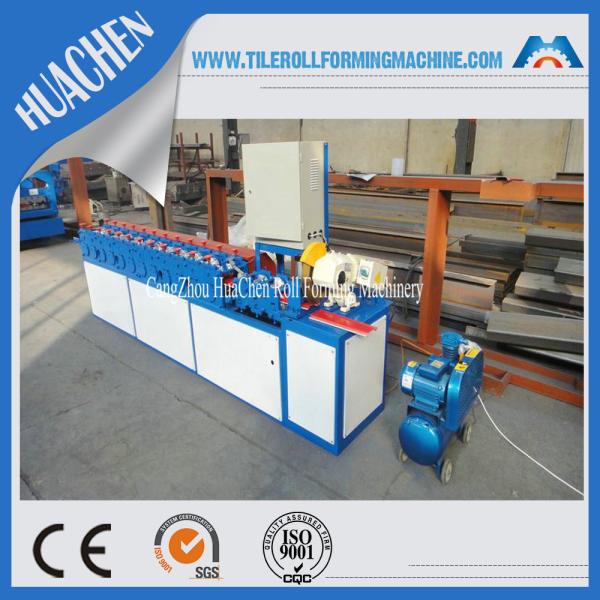

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Application

This type of sheet can be widely used as the door of garage, storage and supermarket.

Competitive Advantage

1. noiseless running

2. good quality

3. high grade steel

4. maintenance-free

5. easy to use
