Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm
Specifications
Brand Name :
HC
Model Number :
HC18/28
Certification :
ISO
Place of Origin :
Botou Hebei China
MOQ :
1set
Price :
15000-39000USD
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 sets/month
Delivery Time :
30days
Packaging Details :
Main machine is nude,the computer control box is packed by carton box
Description

Corrugated IBR Sheet Roll Forming Machine

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 12/12 rows
4. Dimensions: 7.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

Double layer roll forming machine Main parameter

No.

Main parameter of Double layer roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :12 rows
Down level :12 rows

4

Dimensions

7200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

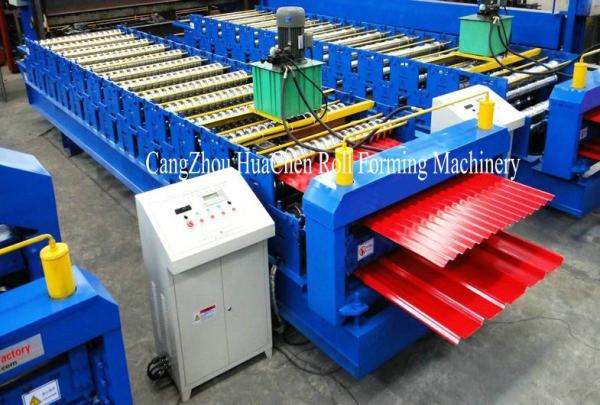

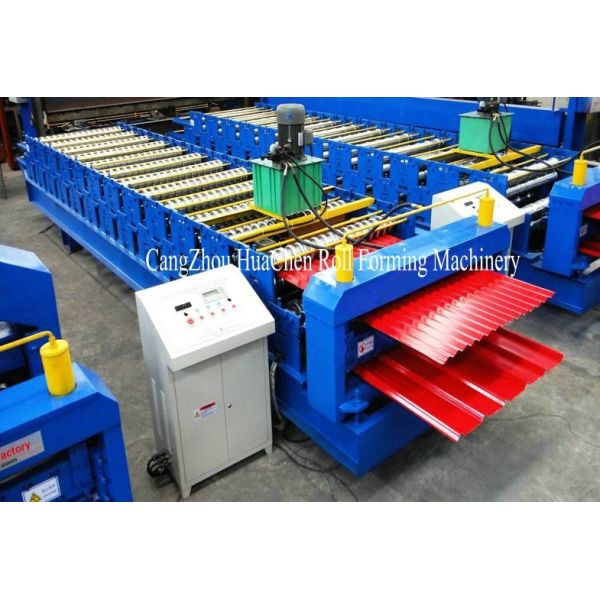

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

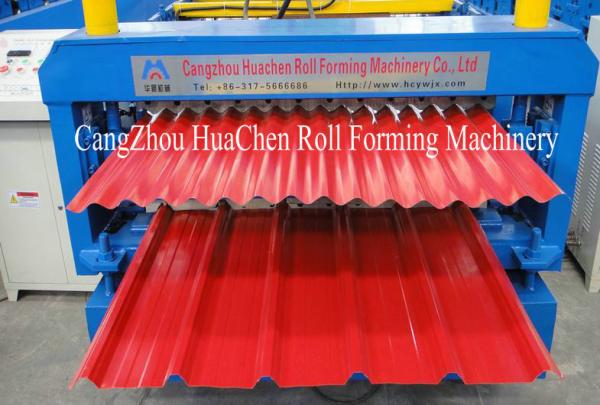

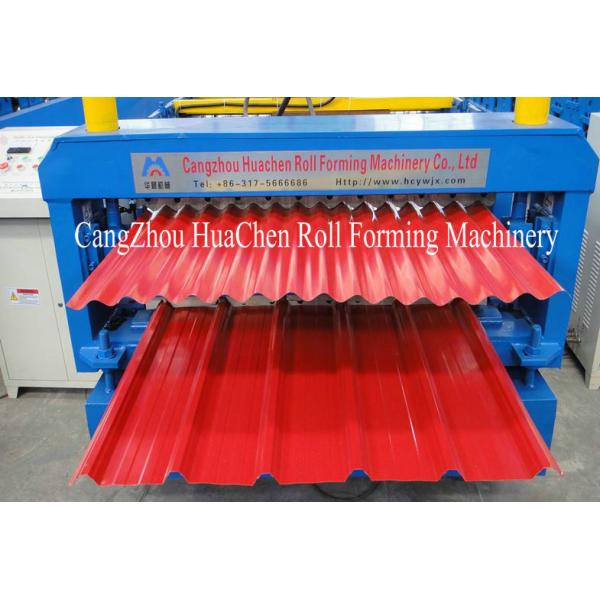

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Corrugated IBR Sheet Roll Forming Machine Precision Within 1.00mmCorrugated IBR Sheet Roll Forming Machine Precision Within 1.00mmCorrugated IBR Sheet Roll Forming Machine Precision Within 1.00mm

Competitive Advantage


1. noiseless running
2. good quality
3. high grade steel
4. maintenance-free
5. easy to use
