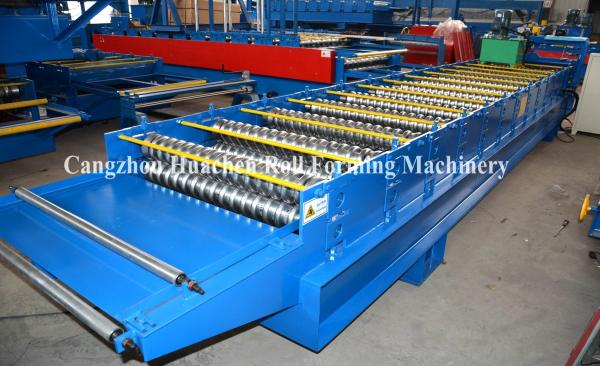

High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
Specifications
Brand Name :
HC
Certification :
ISO
Place of Origin :
Botou Hebei China
MOQ :
1Set
Price :
8000-14000USD
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 Sets/Month
Delivery Time :
30Days
Packaging Details :
Main machine is nude,the computer control box is packed by carton box.
Type :
Corrugated Ironing Wall Panel Roll Forming Machine
Usage :
Wall
Machine power :
4+4KW
Speed :
15-20m/min
Worker :
1-2
Life Time :
20Years
Description

High Speed Corrugated Wall And Siding Panel Roll Forming Machine , Metal Wall Siding Sheet Making Machine

Wall and Siding Panel Roll Forming Machine Technical Parameter

Item NO

Description

Offered specification
1.0 Roll forming machine
1.1 Rolling speed UP to 15m/min(not include cutting time)
1.2 Rolling thickness 1.0mm
1.3 Raw material Color painted coils
1.6 Dimension About 8000×1600×1200(mm)
1.7 Effective width 836mm
1.8 Feeding coil width 1000mm
1.9 Roller stations

About 18 stations
1.10 Roller material 45#forge steel, coated with chrome
1.11 Shaft diameter Φ76mm
1.12 Transmission By chain 1.2 inch
1.13 Material of chain 45# forged steel with frequency quenching, 12A
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 10m+-1.5mm
1.16 Hydraulic station 4KW

Main Components

No Name Quantity
1 5 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables 2 units

Working Flow of Roll Forming Machine

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→Run out table

High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel

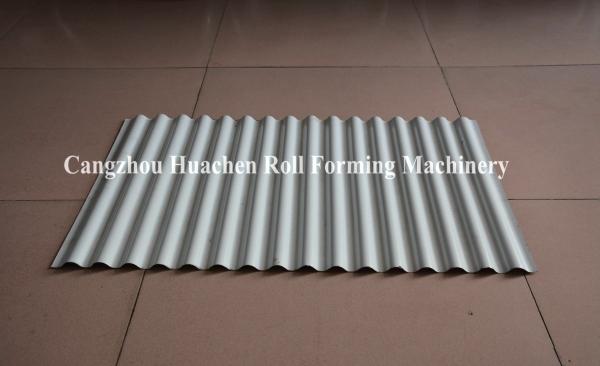

Profile of Product

High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel

High Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding PanelHigh Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding PanelHigh Speed Chain Transmission Corrugated Forming Machine For 1mm Wall And Siding Panel
