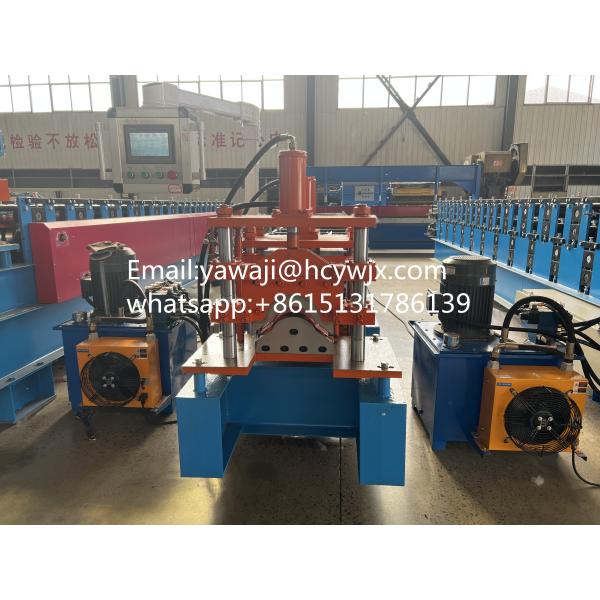

Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Specifications
Brand Name :
Huachen
Model Number :
HC93-245
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation between the two parties
Payment Terms :
T/T
Supply Ability :
20set per month
Delivery Time :
45days
Packaging Details :
non
Material :
PPIG IG Aluminum
Thickness :
0.3-0.6mm
Speed :
15m/min
Color :
blue
width :
500mm
Roller stations :
11stations
Roller shaft material :
45#steel with chrome treatment
Diameter of shaft :
∅70mm
Cutter material :
CR12
Total power :
4+4kw
Voltage :
220v 60Hz 3phases
Description

Product Description

Metal roofing sheets and ridge caps are essential components in roofing systems, particularly in regions that experience harsh weather. Here's an overview of the process for making a roof ridge cap using steel roll forming:

Metal Roofing Sheet and Ridge Cap Overview
Materials:
Steel Sheets: Typically, galvanized or painted steel is used for durability and corrosion resistance.
Coatings: Optional coatings for additional protection and aesthetic appeal.
Roll Forming Process:
Feeding: Steel strips are fed into a roll forming machine.
Molding: The machine contains a series of rollers that gradually shape the metal into the desired profile.
Cutting: The formed ridge cap is cut to length, usually based on the specifications for the project.
Design Considerations:
Profile: The ridge cap should match the roofing sheets for a cohesive look and effective weather resistance.
Dimensions: Width and height should accommodate the roof's pitch and design.
Installation:
Placement: Ridge caps are placed at the peak of the roof, covering the joint between two sloping sides.
Fastening: Secure with screws or clips to ensure stability and prevent water infiltration.

Product Parameter

Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 500mm
Roller Station 11Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Maximum Forming Speed 15m/min
Control System PLC Control
Total Power 4+4KW
Voltage 380V 50Hz 3Phases
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming MachineMetal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Workshop Scene
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
We Can Also Make The Following Machines
NO. NAME
1 Single layer roll forming machine
2 Duoble layer roll forming machine
3 Trapezoidal roll forming machine
4 Glazed tile roll forming machine
5 Currugated roll forming machine
6 Floor deck roll forming machine
7 Roll shutter door forming machine
8 C/Z/Uprofile steel forming machine
9 Ridge cap roll forming machine
10 Downspout forming machine
11 Keel roll forming machine
12 Heat retaining sandwich panel
13 Highway guardrail roll forming machine
14 Carrige board roll forming machine
15 High-frequency pipe welder
16 Hydraulic full-automatic decoiler and accessory equipments
17 Color steel roll forming machine
18 Joint-hidden type forming machine
19 Colorfull stone-coated steel
20 No-girder arched roll forming machine
21 Standing seam arching machine
22 Hydraulic crimping curving machine
23 Steel coil slitting roll forming machine
24 Windshield dust-controlling board producing line
25 Some others can be made on request

Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine

Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine

Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine

Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine

Metal Roofing Sheet Making Roof Steel Ridge Cap Roll Forming Machine
Why Book With Us?
1.We have 20 years of experience in production and sales of tile presses
2.We know the commonly used tile types in each region and can recommend them to customers
3.We have an excellent design and production team that can design and manufacture according to customer needs.
4.We have our own company and welcome customers at any time
5.We can help you contact the shipping company and we can also deliver to your door if you need.
