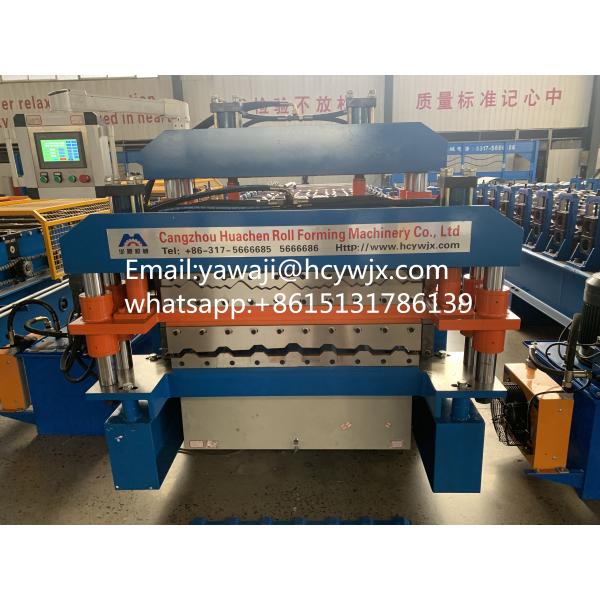

Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material
Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material
Specifications
Brand Name :
HC
Model Number :
HC29-17-1000
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
20set per month
Delivery Time :
20-30 work days
Packaging Details :
Main machine is nude，The workbench is packed with plastic stretch film
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1000mm
Roller Stations :
10/12 Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter Of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15m/min
Total Power :
5.5+5.5KW
Voltage :
380v 50Hz 3phases
Description

Product Description

In modern industrial construction, industrial plants, as important spaces for various production activities, are usually large in scale. Their roof areas are vast, and the demand for roofing materials is extremely considerable.

Main Technical Parameters

Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1000mm
Roller Stations 10/12Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material


This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station
Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material

The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade

Touch Screen Control Cabinet

Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi

Feeding Table & Pre-Cutter

Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material

Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

Shaft & Roller

Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Pressing Section & Cutter

Galvanized Metal Roofing Panel Double Deck Roll Forming Machine for PPGI / GI Material

The material of blade is CR12.

After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.

The double-layer tile pressing machine has its advantages in such scenarios. Its unique double-layer design can produce two tiles of different specifications at the same time. This feature greatly improves production efficiency and greatly shortens the production cycle compared to traditional production methods.
