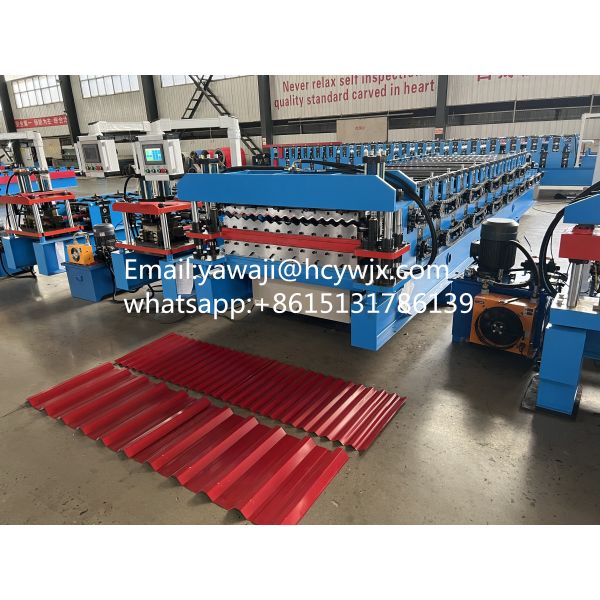

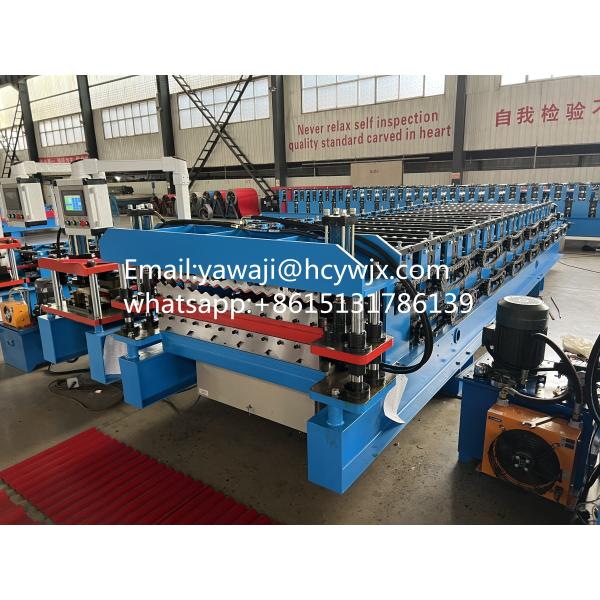

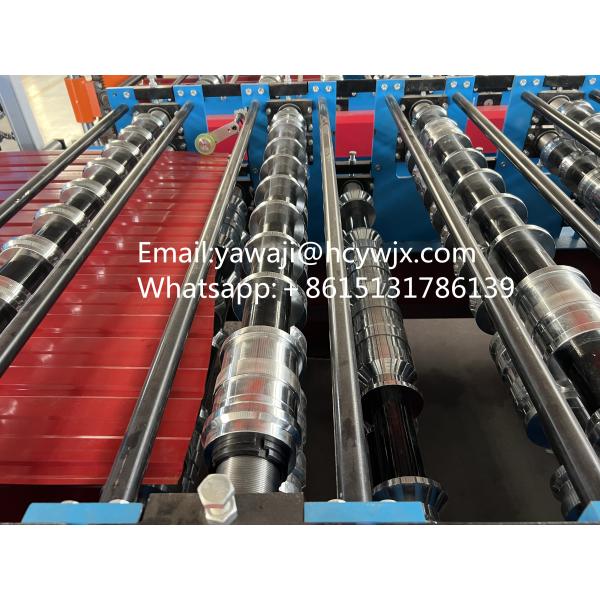

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Specifications
Brand Name :
Huachen
Model Number :
HC18 / 32
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation between the two parties
Payment Terms :
T/T
Supply Ability :
20set per month
Delivery Time :
45days
Packaging Details :
non
Material :
PPIG IG Aluminum
Thickness :
0.3-0.6mm
Speed :
15m/min
Color :
Blue
width :
1220mm
Roller stations :
12/15stationgs
Roller shaft material :
45#steel with chrome treatment
Diameter of shaft :
∅70mm
Cutter material :
CR12
Total power :
4+4kw
Voltage :
220v 60Hz 3phases
Description

Product Description

Double Layer Roll Forming Machine for Sale Double Layer Galvanized Tile Roofing Sheet Making Machine

A double layer roll forming machine is an advanced piece of equipment used in the production of metal sheets with two distinct profiles in a single pass. This machine is particularly efficient for manufacturers looking to maximize output while minimizing material waste. Here’s a brief introduction:

Key Features

  1. Dual Profile Production:

    • Capable of producing two different profiles simultaneously, such as roofing sheets and wall panels, without the need for changing the tooling.

  2. High Efficiency:

    • Reduces production time and increases output, as it combines two processes into one.

  3. Customization:

    • The machine can often be customized to produce various profiles based on specific requirements.

  4. Durable Construction:

    • Built with high-quality materials to withstand continuous operation and ensure longevity.

  5. Automatic Control System:

    • Equipped with advanced control systems for easy operation and monitoring, improving precision and consistency.

Applications

  • Construction Industry: Commonly used for producing roofing and siding materials.
  • Manufacturing: Useful for creating components for various industrial applications.

Benefits

  • Cost-Effective: Reduces labor and production costs by eliminating the need for multiple machines.
  • Space-Saving: Combines two machines into one, saving valuable floor space in manufacturing facilities.
  • Versatility: Can be used for different materials, including steel, aluminum, and other metals.

  • Product parameter

    Material Type PPGI/GI/Aluminum
    Thickness 0.3-0.6mm
    Width

    Corrugated: 1220mm

    Trapezoid: 1220mm
    Roller Stations 10/12Stations
    Roller & Shaft Material 45# Steel with Chrome Treatment
    Diameter of Shaft Φ70mm
    Cutter Material CR12
    Speed 15m/min
    Total Power 4+4KW
    Voltage 220V 60Hz 3Phases

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

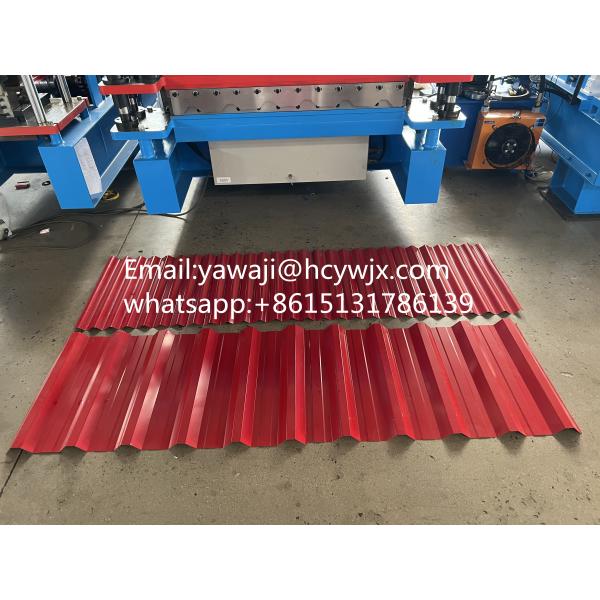

Finished products showing

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Workshop scene
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine
We can also make the following machines
NO. NAME
1 Single layer roll forming machine
2 Duoble layer roll forming machine
3 Trapezoidal roll forming machine
4 Glazed tile roll forming machine
5 Currugated roll forming machine
6 Floor deck roll forming machine
7 Roll shutter door forming machine
8 C/Z/Uprofile steel forming machine
9 Ridge cap roll forming machine
10 Downspout forming machine
11 Keel roll forming machine
12 Heat retaining sandwich panel
13 Highway guardrail roll forming machine
14 Carrige board roll forming machine
15 High-frequency pipe welder
16 Hydraulic full-automatic decoiler and accessory equipments
17 Color steel roll forming machine
18 Joint-hidden type forming machine
19 Colorfull stone-coated steel
20 No-girder arched roll forming machine
21 Standing seam arching machine
22 Hydraulic crimping curving machine
23 Steel coil slitting roll forming machine
24 Windshield dust-controlling board producing line
25 Some others can be made on request

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

Group photo of some customers

Double Layer Galvanized Tile Roofing Sheet Making Roll Forming Machine

Why book with us?

1.We have 20 years of experience in production and sales of tile presses

2.We know the commonly used tile types in each region and can recommend them to customers

3.We have an excellent design and production team that can design and manufacture according to customer needs.

4.We have our own company and welcome customers at any time

5.We can help you contact the shipping company and we can also deliver to your door if you need.
