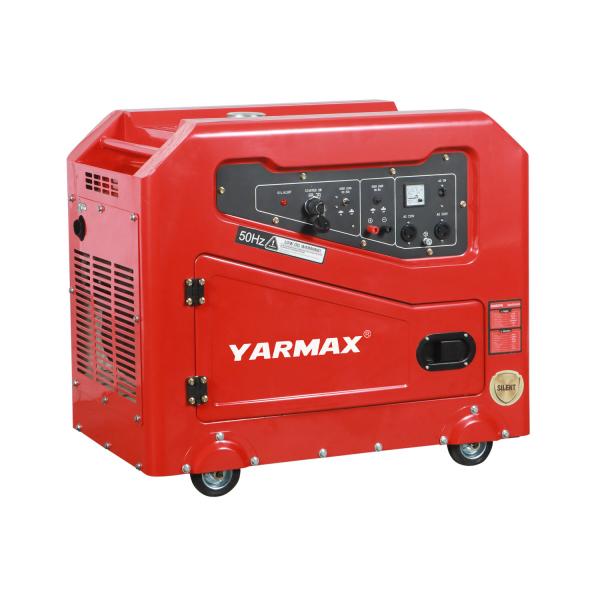

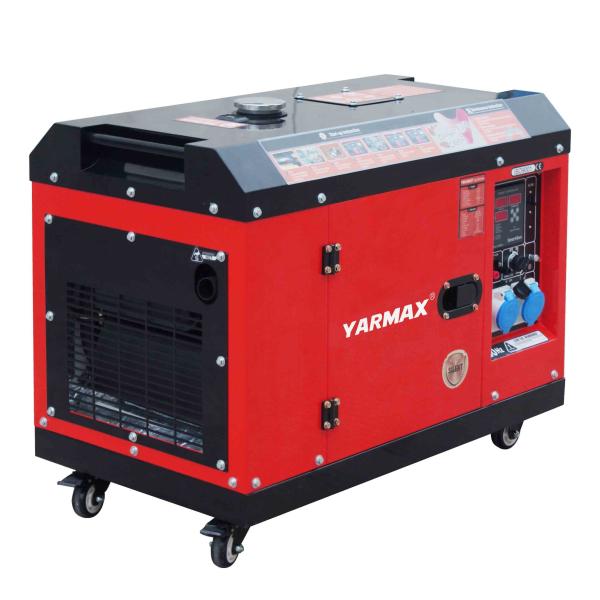

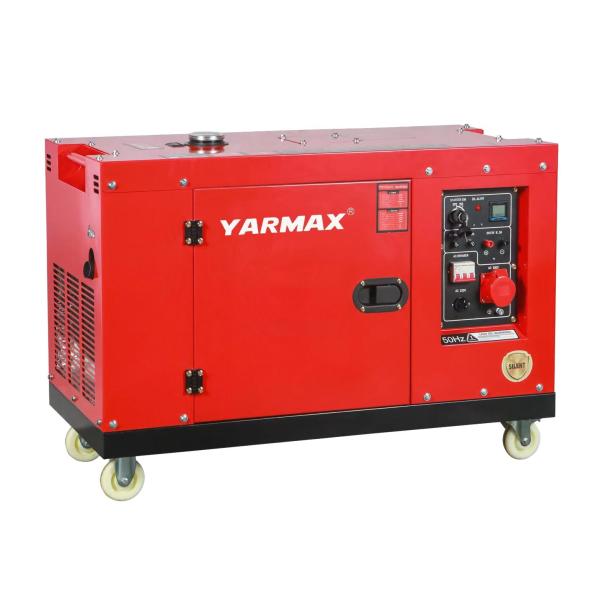

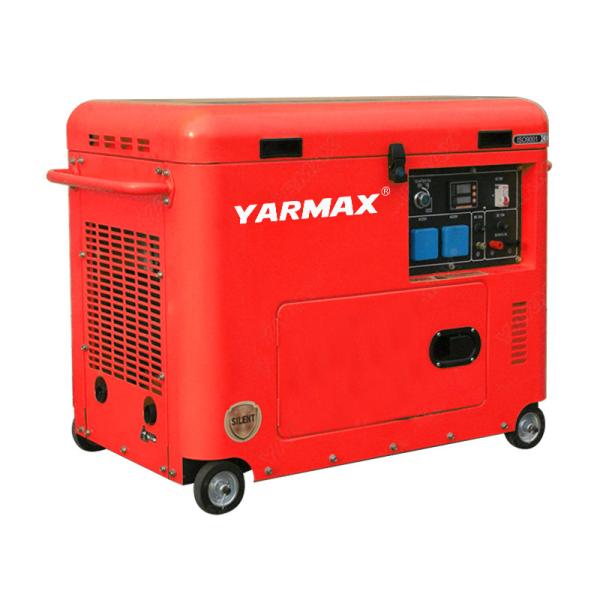

YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
YM11000T Silent Diesel Generator 8.5KW 8.0KW 1100FE Single cylinder
Specifications
Brand Name :
YARMAX
Model Number :
YM11000T
Certification :
ISO9001, CE
Place of Origin :
Changzhou, China
MOQ :
10 sets/ 10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union
Supply Ability :
3000 sets per month
Delivery Time :
15 working days
Packaging Details :
Carton, 1160mm*695mm*880mm, 100 sets for one 40HC container
Rated Frequency :
50Hz
Rated Output Power :
8.0KW
Maximum Power :
8.5KW
Rated Voltage :
230V
Rated Current :
36.4A
Rated Speed :
3000r/min
Phase :
Single
Power Factor :
1.0Cosφ
Insulation Level :
F
Pole Number :
2
Excitation Mode :
Self-excited Constant Voltage (with AVR)
Output Mode :
Terminal
DC12 Output :
DC12V 8.3A
Work Size(L*W*H) :
1160mm*695mm*880mm
Net Weight :
215KG
Noise Level :
79db away 7 meters
Structure Mode :
Silent Frame
Engine Model :
YM1100FE
Marketing Type(engine) :
Single cylinder,4 stroke,air cooled, direct in injection
Bore*Stroke(engine) :
100mm*85mm
Displacement(engine) :
667mL
Maximum Power(engine) :
10.5KW，3000r/min
Compression Ratio(engine) :
19:1
Ignition Mode :
Compressed
Cooling Mode :
Air
Lubrication Mode :
Combined Pressure and Splash
Starting Mode :
Electric
Fuel :
Diesel
Lubricating Oil :
SAE10W30(Above CD Level)
Lubricating Oil Capacity :
2.0L
Starting Motor Capacity :
12V 1.6KW
Flywheel Generator Capacity :
100W
Accumulator Capacity :
12V 36Ah
Specific Fuel Consumption :
280g/kw.h
Unit Fuel Tank Capacity :
25L
Description

8.5KW 8.0KW Silent Diesel Generator YM11000T 1100FE Single cylinder

Description

The workmanship of portable diesel generator is very exquisite, the startup is easy, the materials used are good, the motor is also made of pure copper, the noise is very small, the power is high, the voltage is stable, the quality is also good, the power generation is very fast, the effect is very good, no noise is safe and very It is fuel-efficient, the ignition is easy to pull, the accessories are complete, the exterior design is very beautiful, very exquisite, and the most important thing is his voice, which is very small.

Specification

Item Specification
Rated Frequency 50Hz
Rated Output Power 8KW
Rated Current 36.4A
Output Mode Terminal
Net Weight 215KG
Noise Level 79db away 7 meters
Engine Model YM1100FE
Starting Motor Capacity 12V 1.6KW
Accumulator Capacity 12V 36Ah

commitment

Based on the spirit of "all pursuit of high quality, customer satisfaction as the purpose", we solemnly promise you with the principle of "the most favorable price, the most considerate service, and the most reliable product quality":

Product Quality Commitment:

1. The manufacturing and testing of portable diesel generators have quality records and testing data.

2. For product performance testing, we sincerely invite users to personally inspect the whole process and performance of the portable diesel generator, and then pack and ship the product after it is confirmed to be qualified.

Product price commitment:

1. In order to ensure the high reliability and advancement of the portable diesel generator, the selection of materials for the system is selected from domestic or international high-quality brand-name products.

2. Under the same competitive conditions, our company will sincerely provide you with the most favorable price on the basis of not reducing product technical performance or changing product components.

Delivery time commitment:

1. Product delivery time: try to meet user requirements. If there are special requirements and need to be completed in advance, our company can specially organize production and installation, and strive to meet user requirements.
