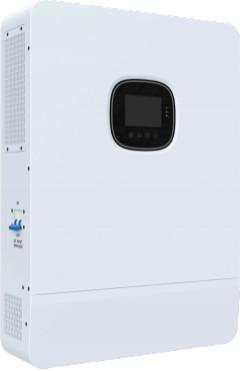

Super 48V 8KW To 10KW Pure Sine Solar Inverter For Home Energy Storage System
Super 48V 8KW To 10KW Pure Sine Solar Inverter For Home Energy Storage System
Specifications
Brand Name :
TINKO/OEM
Model Number :
TKSPI
Certification :
CE/ROHS/MSDS/UN38.3
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Supply Ability :
100pcs/day
Packaging Details :
parer carton
Dimensions :
620*445*130mm
Weight :
27kgs
Protection :
IP20
Warranty :
2 years
Noise :
<60dB
Installation Style :
Indoor Only
Description

Product Description

TINKO 48V SPI series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.

Super 48V 8KW To 10KW Pure Sine Solar Inverter For Home Energy Storage System


Product Features

  • Supports lead-acid battery and li-ion battery connections.
  • With a dual activation function when the li-ion battery is dormant; either mains or photovoltaic power supply access can trigger the activation of the li-ion battery.
  • Support three-phase pure sine wave output (350 ~415V).
  • Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
  • Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
  • Dual MPPT, efficiency up to 99.9%, single maximum current of 22A, perfectly adapted to high- power modules.
  • 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains and PV charging.
  • Time-slot charging and discharging setting function is available in both off-grid and hybrid grid-connected modes.
  • Stand-alone energy saving mode function to reduce no-load energy losses.
  • With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
  • LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.
  • 360° protection with complete short-circuit protection, over-current protection, overvoltage protection, undervoltage protection, overload protection, etc.
  • Support CAN, USB, and RS485 communication.
  • With N grounding option.


Product Technical Parameters

MODELSPI-8K-SPSPI-10K-SPCAN BE SET
INVERTER OUTPUT
Rated Output Power8,000W10,000W
Max.Peak Power12,000W15,000W
Rated Output Voltage230Vac(Single phase)Y
Load Capacity of Motors5HP6HP
Rated AC Frequency50/60HzY
WaveformPure Sine Wave
Switch Time10ms(typical)
Parallel capacity1 ~ 6 units




Overload

After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted.

(102%<load<110%) ±10%: error and output shutdown

(110% < load < 125%) ±10%: error and output shutdown

Load > 125% ±10%: error reported and output switched off after 5s.
BATTERY
Battery TypeLi-ion / Lead-Acid / User DefinedY
Rated Battery Voltage48Vdc
Voltage Range40-60VdcY
Max.MPPT Charging Current180A200AY
Max.Mains/Generator Charging Current100A120AY
Max.Hybrid Charging Current180A200AY
PV INPUT
Num. of MPP Trackers2
Max.PV array power5500W+5500W
Max.input current22A+22A
Max.Voltage of Open Circuit500Vdc+500Vdc
MPPT Voltage Range125-425Vdc
MAINS / GENERATOR INPUT
Input Voltage Range90-275Vac
Frequency Range50/60Hz
Bypass Overload Current63A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max. Battery Inverter Efficiency92%



MODELSPI-8K-SPSPI-10K-SPCAN BE SET
GENERAL
Dimensions620*445*130mm(2.03*1.46*0.43ft)
Weight27kg (59.52lb)
Protection DegreeIP20,Indoor Only
Operating Temperature Range-10~55℃, >45℃ derated (14~131℉,>113℉ derated)
Noise<60dB
Cooling MethodInternal Fan
Warranty2 Years
COMMUNICATION
Embedded InterfacesRS485 / CAN / USB / Dry contactY
External Modules (Optional)Wi-Fi / GPRSY
CERTIFICATION
SafetyIEC62109-1, IEC62109-2
EMCEN61000-6-1, EN61000-6-3, FCC 15 class B
RoHSYes
