Intelligent Metal Can Welding Machine 20-80 Cans/min for food cans / chemical cans
Intelligent Metal Can Welding Machine 20-80 Cans/min for food cans / chemical cans
Specifications
Production capability :
20-80 cans/min
Applicable can diameter :
Φ52-Φ175mm
Applicable can height :
70-420mm
Applicable material :
Tinplate/Steel-based
Applicable material thickness :
0.18-0.42mm
Seam welding landing :
0.6mm 0.8mm 1.2mm
Seam point distance :
0.5-0.8mm
Applicable copper wire diameter :
Φ1.38mm Φ1.5mm
Cooling water :
Temperature:12-18℃ Pressure:0.4 -0.5Mpa
Discharge: :
7L/min
Compressed air consumption :
600L/min
Pressure of compressed air :
0.5Mpa-0.7Mpa
Power :
1200x1100x1800mm
Total power :
18kg
Dimension :
1750x1100
Description

Intelligent Metal Can Body Welding Machine

Intelligent Metal Can Welding Machine 20-80 Cans/min for food cans / chemical cansIntelligent Metal Can Welding Machine 20-80 Cans/min for food cans / chemical cansIntelligent Metal Can Welding Machine 20-80 Cans/min for food cans / chemical cans

Description

This product applies to the welding of carious cam, such as food cans, chemical cans and square bucket. It can be matched with the inner and outer coating machine and the drying machine of the can body. According to customer’s demands to accelerate the speed. Non-mercury welding device, remote control system, weld seam detecting system are available to the equipped.

Technical Specification

Production capability

20-80 cans/min

Applicable can diameter

Φ52-Φ175mm

Applicable can height

70-420mm

Applicable material

Tinplate/Steel-based

Applicable material thickness

0.18-0.42mm

Seam welding landing

0.6mm 0.8mm 1.2mm

Seam point distance

0.5-0.8mm

Applicable copper wire diameter

Φ1.38mm Φ1.5mm

Cooling water

Temperature:12-18℃ Pressure:0.4 -0.5Mpa

Discharge:

7L/min

Compressed air consumption

600L/min

Pressure of compressed air

0.5Mpa-0.7Mpa

Power

1200x1100x1800mm

Total power

18kg

Dimension

1750x1100

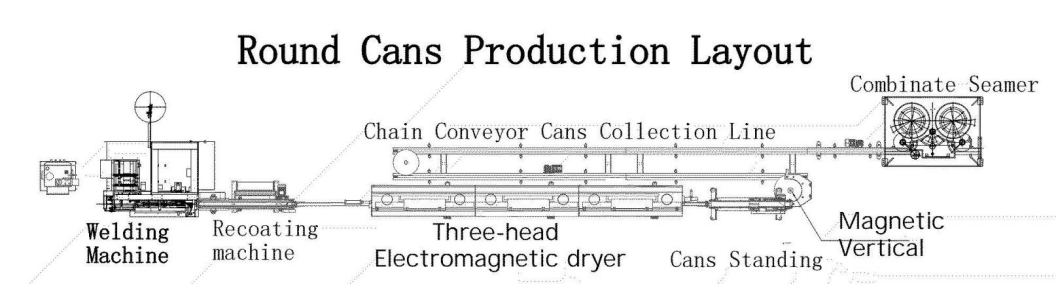

Regarding Production Process

Intelligent Metal Can Welding Machine 20-80 Cans/min for food cans / chemical cans


Related Specification


Welding Speed(m/min)

Diameter Range(mm)

Production Speed(CPM)

Cans Height Range(mm)

6-23m/min

Φ220-Φ300mm

30-50 cans/min

250-450mm

6-21m/min

Φ220-Φ300mm

15-30 cans/min

250-450mm

6-26m/min

Φ65-Φ180mm

40-100cans/min

70-320mm

6-18m/min

Φ52-Φ175mm

20-80 cans/min

70-420mm

18m-40m/min

Ф65(Ф52)mm-Ф176mm

300 cans /min

70-260mm(320mm)

6-18m/min

Φ52-Φ175mm

20-80 cans/min

70-420mm

12m-20m/min

Ф65(Ф52)mm-Ф176mm

150 cans /min

70mm-260mm (320mm)

ADAPTS to tinplate thickness:0.16MM-0.43MM

MORE MODELS,CLICK HERE.


FAQ:

Q1: Are auxiliary devices like water chillers included?
A1: The price does not include auxiliary devices. However, we offer a range of auxiliary equipment, such as welding wheels and water chillers, as optional add-ons for customers. Purchasing these as a package from us provides a cost-effective option.

Q2: How many molds are included with a welding machine? If additional molds are needed, what is the cost?
A2: Each welding machine comes with one standard mold included. If an additional mold is required, the cost is ¥12,000 per set. This price reflects a discounted rate for customers purchasing the welding machine directly from us. For subsequent purchases, additional shipping costs, such as air freight, may apply.

Q3: How can I choose a suitable and stable welding machine within my budget?
A3: Please share details about your desired production speed and product requirements. Based on this information, we will recommend a cost-effective option, whether a semi-automatic, automatic, or fully automatic variable frequency welding machine, tailored to your needs
