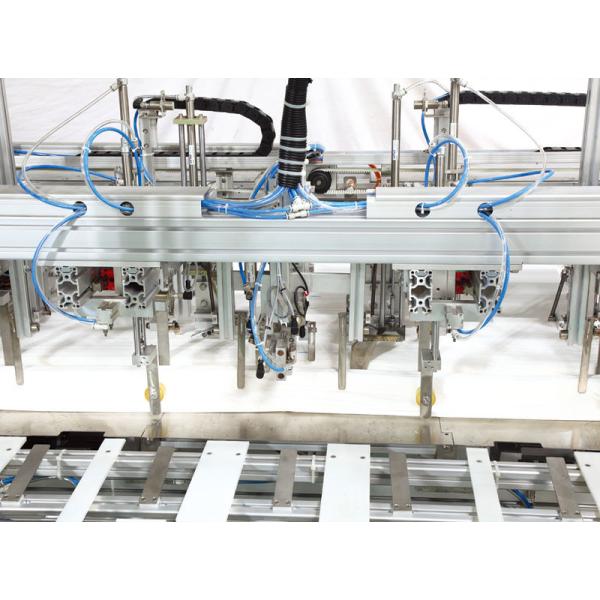

Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Specifications
Warranty :
1 Year
Type :
Other
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Application :
Commodity, Medical
Packaging Type :
Bags, Cartons, case, Film
Packaging Material :
PE
Automatic Grade :
Automatic
Driven Type :
Pneumatic
Voltage :
380V
Power :
11.4KW
Place of Origin :
Zhejiang, China
Brand Name :
ONEPAPER
Weight :
2600 KG
Dimension(L*W*H) :
7200*3550*1950
Key Selling Points :
Automatic
Packaging Materials :
Prefabricated bag (PE)
Maximum bag size :
L640*W450mm
Package style :
Single row 3-6 packs, double row 3-6 packs (according to size)
Production capacity :
≤35bags/min
Medium bag inventory :
≤300pcs
Power supply type :
Three-phase four-wire 380V 50Hz
Total type :
11.4KW
Air supply :
0.6Mpa-0.8Mpa
Air consumption :
180-300L/H
Machine weight :
2600Kg
Marketing Type :
Ordinary Product
Packaging Details :
wooden box
Port :
ningbo shanghai
Supply Ability :
20 Set/Sets per Month
Price :
$60,000.00/sets 1-1 sets
Description
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Product Description
Product Name
Middle Bag Tissue Paching Machine
Packaging Materials
Prefabricated bag (PE)
Maximum bag size
L640×W450mm
Package style
Single row 3-6 packs, double row 3-6 packs (according to size)
Medium bag inventory
≤300个(pcs)
Packing specification
L120-420mm,W100-210mm, H40-110mmsingle row
L120-420mm,W100-450mm,H40-110mmDouble row
Production capacity
≤35(bags/minute)
Power
Three-phasefour-wire 380V 50Hz 11.4KW
Air supply
0.6Mpa-0.8Mpa
Air consumption
180-300L/H
Outline dimensions
Host
L7200×W3550×H1950mm
Conveyor
L4050×W1300×H950mm
Machine weight
2600Kg
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Main performance and structural features:
1. It completes the steps of conveying the entire row of counting, bag pulling, bag feeding, bag opening, material pushing, gusset sealing, tail discharge, finished product output, etc., with compact and reasonable structure and simple operation and adjustment;

2. Using 10-axis servo motor and 10-inch touch screen, motion control system, the man-machine interface display operation is clearer and simpler; with a high degree of automation, and more humane;

3. The use of automatic material sorting and conveying mechanism is convenient for linkage production with front-end equipment, which can greatly reduce labor costs;

4. Adopt photoelectric eye automatic detection and tracking system, no material will not be sent to the bag, which saves packaging materials to the greatest extent;

5. The packaging range is large, the adjustment is convenient, and the quick conversion between various specifications and sizes can be realized;

6. Fully automatic bag pulling, double servo system drive control, accurate and reliable positioning of pre-made bags;

7. Adopt double bag storage design to meet the needs of uninterrupted work, and automatically move according to the height of the bag;

8. Double push rods alternately push into the bag, servo system drive control;

9. The front end can be connected with soft-pump paper packaging machine, cotton soft towel packaging machine and other equipment, and the back end can be connected with equipment such as packing and palletizing.

Company Profile
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Exhibition
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
Packing & Delivery
Medium Bag Inventory Full-servo Soft Drawn Paper Tundish Wrapping Machine with Intelligent Control
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: How about the after sales service?
A: We have a strong team for after sales services. We have 1 year warranty for all the machines

Q: Are you a factory or a trading company?
A: We're a manufacturer specializing in tissue equipments and packaging machines.

Q: Where's your factory? How can I visit it?
A: We're in Wenzhou city, Zhejiang province,China .You can fly to Wenzhou, and we'll pick you up at the airport.

Q: How does your factory do regarding quality control?
A: Quality is our main topic, it's the basement of a company's development. We've passed the GMP certification, CE certification, ISO9001 International Quality Control System Certification.

Q: What information should,provide in order to get a quotation?
A: -Dimension of your products(Lengths Width"Height)
-The requirements of speed
-Dimension of your package(Length*Width*Height)
