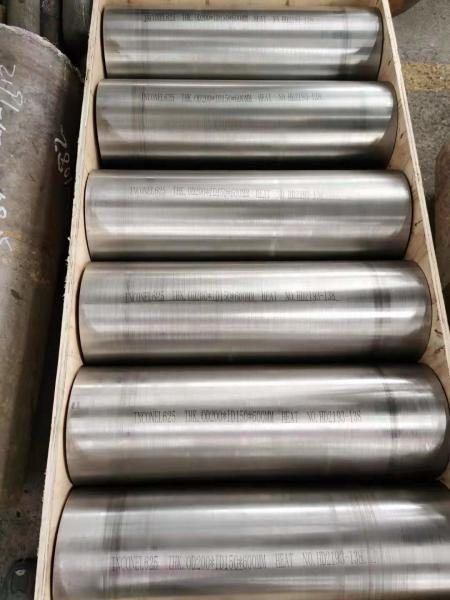

Durable Inconel 625 Tube With Excellent Corrosion Resistance Oxidation Performance
Durable Inconel 625 Tube With Excellent Corrosion Resistance Oxidation Performance
Specifications
Brand Name :
ZYD
Model Number :
ZYD-Custom-Metal
Certification :
ISO9001
Place of Origin :
China
MOQ :
1KG
Price :
Negotiable
Payment Terms :
L/, D/A, D/P, T/T, Western Union
Supply Ability :
10000 kgs per month
Delivery Time :
3-30 days
Packaging Details :
standard export case
Material :
NS336 GH3625 GH625 (China), NC22DNb (France), W.Nr.2.4856 (Germany)
Standard :
ASTM B446 AMS 5666 ASME SB446
Application :
manufacture of aeroengine parts, aerospace structural parts and chemical equipment.
Sample :
Available
Description

Inconel 625 With Excellent Corrosion Resistance And Oxidation Performance

Inconel 625 Features:

The alloy is molybdenum and niobium as the main strengthening element of the solid solution strengthened nickel-based superalloy with excellent corrosion resistance and oxidation performance, from low to 980 ℃ have good tensile properties and fatigue properties, and salt-tolerant Fog corrosion in the atmosphere. Therefore, it can be widely used in the manufacture of aeroengine parts, aerospace structural parts and chemical equipment

Chemical composition:

Alloy
Grade		 % Ni Cr Fe Mo Nb Co C Mn Si S Cu Al Ti
Inconel
625		 Min Margin 20.0 8.0 3.15
Max 23.0 5.0 10.0 4.15 1.0 0.10 0.5 0.5 0.015 0.07 0.4 0.4

Mechanical properties: (at 20 ℃ to detect the minimum mechanical properties)

Heat treatment methods tensile strengthσb/MPa Yield Strengthσp0.2/MPa Elongationσ5/% Brinell hardness HBS
Solution treatment 830 410 30 290


Qualifications:

SGS.ISO9001:2008
The 3rd test report: Bao Ti Center Physical and Chemical Test Report or Northwest Institute For Non-ferrous Metal Research Test
Why Choose Us

1. From raw material to final products,the unique number will be record. It is be tracted back to any process ,if any problem on final goods.

2. ISO9001 certificated,and the third party inspection avaiable on the products.

3. Our factory located in " Titanium Valley" in Baoji city, which has a strong supportinge equipment

4. Our sales are good at international standards, and global purchasing requirement. Good communicate and the best cooperator.
