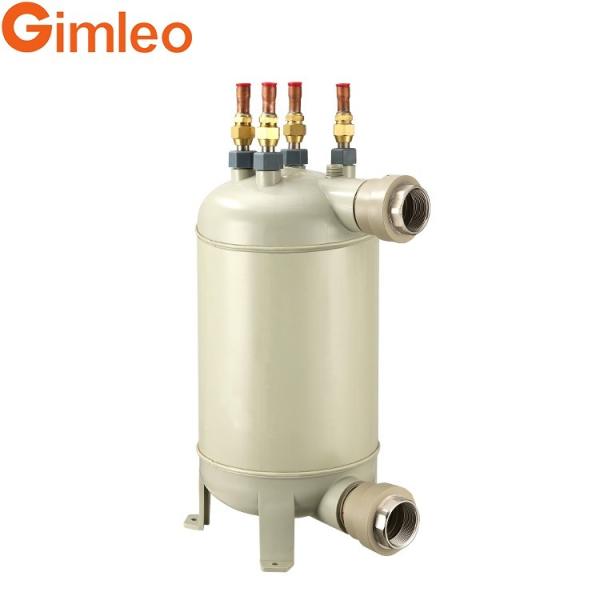

5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Gimleo
Certification :
RoHS
Packaging Details :
plywood case
Supply Ability :
1500 Set/Sets per Week
Price :
$314.00/sets 1-49 sets
Model Number :
HTS-2
MOQ :
10
Payment Terms :
T/T
Delivery Time :
14days
Applicable Industries :
Manufacturing Plant, Restaurant, Home Use, Retail, Printing Shops, Energy & Mining, Advertising Company
Warranty of core components :
1 Year
Structure :
Tube Heat Exchanger, Type A
Liquid Flow Rate :
4.5m³/h
Weight :
20KG
Warranty :
1 Year
Working Temperature Range :
0~70℃
Used as :
Condenser or evaporator
Tube :
Pure titanium seamless tube
Max.temperature :
70℃
Description

5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2

Description:

  • Introducing the HTS-2, a robust and high-efficiency sea water heat exchanger from Gimleo, specifically engineered to withstand extreme conditions with a maximum working pressure of 5MPa. Built with a corrosion-resistant PPR shell and premium titanium tubes, the HTS-2 is designed to provide superior performance in harsh marine and industrial environments where resistance to saltwater and chemicals is essential.
  • The HTS-2 leverages titanium’s exceptional corrosion resistance to ensure long-lasting durability and minimal maintenance, making it ideal for sea water cooling systems, aquaculture, and industrial water treatment. Its optimized design maximizes heat transfer, enhancing system efficiency while reducing energy consumption. Compact and easy to install, the HTS-2 integrates seamlessly into existing systems, offering reliable performance for both cooling and heating applications.

Quick Details:

  1. 5MPa Max Pressure: Engineered to handle high-pressure sea water applications with ease.
  2. Corrosion-Resistant Titanium Tubes: Designed for maximum durability and performance in saltwater environments.
  3. PPR Shell: Provides excellent resistance to chemical corrosion, extending the system’s lifespan.
  4. Optimized Heat Transfer: Ensures high efficiency, reducing energy consumption and operational costs.
  5. Compact Design: Simplifies installation and maintenance, making it perfect for confined spaces.
  6. Versatile Applications: Suitable for marine cooling, aquaculture, and industrial water treatment.

Specification:

PPR Titanium Heat Exchanger

Model

Heating

capacity1(KW)

Heating

capacity2(KW)

Water flow

(m3/h)

Height

(mm)

 Titanium Tube Size (mm*mm*unit) water connection (inch)
HTS-1 14 7 3 590 16*6000 1.5
HTS-1.5 17 8.5 3.5 640 19*6000 1.5
HTS-2 21 10.5 4.5 680 19*7500 1.5
HTS-3 28 14 6 812 19*9500 1.5
HTS-5 33 15.5 7 785 19*12000 2
HTS-7 35 17 7.5 665 2*19*6500 2
HTS-10 40 20 8.5 665 2*19*7500 2


Heating1: DB 24 ℃,WB 19℃, Inlet water 26℃, outlet water 28℃
Heating2: DB 20 ℃,WB 15℃, Inlet water 45℃, outlet water 50℃

Products Detail:

5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
5MPa Max Pressure Sea Water Heat Exchanger with Corrosion-Resistant Titanium PPR HTS-2
