Specifications
Brand Name :
Changsheng
Model Number :
ASTM
Certification :
ISO 9001
Place of Origin :
China
MOQ :
50kg
Price :
15usd/kg
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50T/MONTH
Packaging Details :
film and wooden case,carton Packaging can be according to customer requirements.
Delivery Time :
15-DAYS
Materials :
Titanium
Grade :
Grade 1,Grade 5, ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11
Diameter :
Customizable
Surface :
Polished, Pickling
MOQ :
50kg
Standard :
ASTM B348,AMS 4904,ASTM F67,ASTM F136
Technical :
Forged
Hardness :
285-340HB
Color :
Silvery
Elongation :
min. 24%
Size :
Diameter 3mm-300mm, Length up to 6000mm
Surface Finish :
Polished
Inventory :
Large stock
Diameter Tolerance :
h7, h8, h9
Type :
Solid ball, hollow ball
Density :
4.51 g/cm3
Material :
Titanium
Origin :
China Valley
Processing Equipment :
CNC Lathe, Hydraulic Press, Rolling Mill
Sample :
Avaliable,Hot sale gr1 titanium bar
Production Standards :
ASTM B348, ASME SB348
Description

Description

Specification: Rolled ¢8.0-- 40mm× L; Forging ¢40-- 150mm×L
Metallographic structure: pure titanium grain size is not less than 5, and TC4 titanium alloy conforms to A1-A9.
Surface: black surface, polished surface, polished surface (H11, H9, H8)
Performance of medical titanium rod (reference executive standard: GB/T13810-2007, ASTM F67/F136).

Stock

Dia: 5-600mm

Length:1000-6000mm

Grade: grade 2, grade 5 Eli / grade 23

Standard: ASTM F67, ASTM F136, ASTM F1472

Tolerance: H6, H7, H8, H9

Surface: Polished

Technical: Forged

Application: Medical and aerospace

Physical Properties and Compositions

Grade Tensile strength MPA Yield strength MPA Elongation %
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10

Grade Fe Max

O

Max

N

Max

C

Max

H

Max

Pd Max

Al

Max

Va Max Ni Max Mo Max
/ Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt %
Gr1 0.2 0.18 0.03 0.08 0.015
Gr2 0.3 0.25 0.03 0.08 0.015
Gr4 0.5 0.4 0.05 0.08 0.015
Gr5 0.4 0.2 0.05 0.08 0.015 5.5-6.7 3.5-4.5
Gr7 0.3 0.25 0.03 0.08 0.015 0.12- 0.25
Gr9 0.25 0.15 0.03 0.08 0.015 2.5-3.5 2.0-3.0
Gr12 0.3 0.25 0.03 0.08 0.015 0.6-0.9 0.2-0.4
Gr23 0.25 0.03 0.03 0.08 0.0125 5.5-6.5 3.5-4.5
Ti Balance

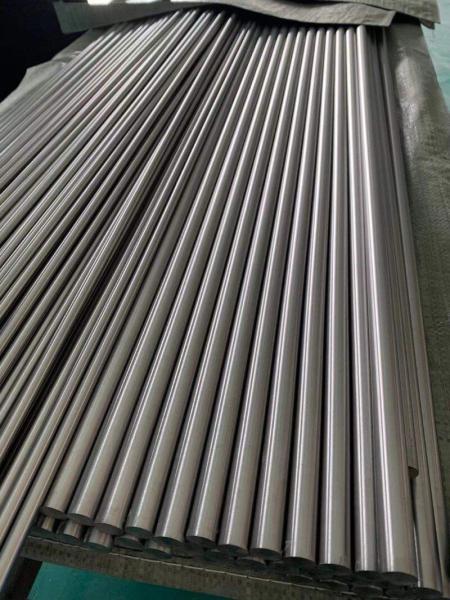

Product photo

ASTM F136 TC4 Gr5eli Round Bar Titanium Small Rod Pharmaceutical Industry
