factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
factory supplier ASTM B338 Ti-6Al-4V Grade 5 welding titanium pipe
Specifications
Brand Name :
CSTY
Model Number :
CSTY-TB
Certification :
ISO9001:2015
Place of Origin :
China Baoji
MOQ :
50kg
Price :
100-1000USDper kg
Payment Terms :
T/T, L/C or Negotiation
Supply Ability :
100Tons per month
Delivery Time :
15-30days
Packaging Details :
Caroton Boxes or Export Wood Case Or As Client Requried
Material :
Titanium Ti-6Al-4V Grade 5
OD :
OD45-600ｍｍ
Length :
1000-6000mm
Wall thickness :
0.1-5mm
Standard 2 :
ASTM B 338
MOQ :
1PCS
Surface :
Polished
Application :
Industrial, Aerospace
Technique :
welding titanium pipe
Grade :
GR5 titanium alloy tubes
Description

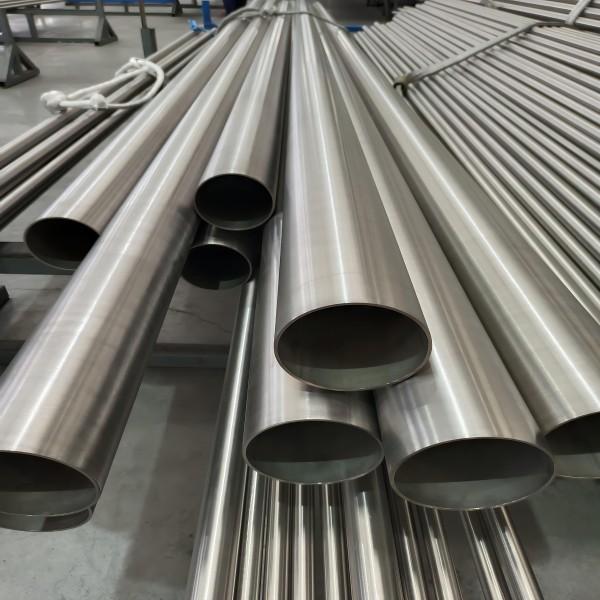

High Strength Ti-6Al-4V Grade 5 Titanium Welded Pipe ASTM B338 3000mm

Brand: TA1, TA2, TA9, TA10, TC4(GR1, GR2, GR7, GR10, GR5)
Specification: Titanium welded tube outer diameter (45.0 ~ 600mm)

Wall thickness (0.1 ~ 5.0mm)

Length (1000 ~ 6000mm)
Supply state: Annealing state (M)
Packing: according to customer's requirement. (Woven bag, wooden case)

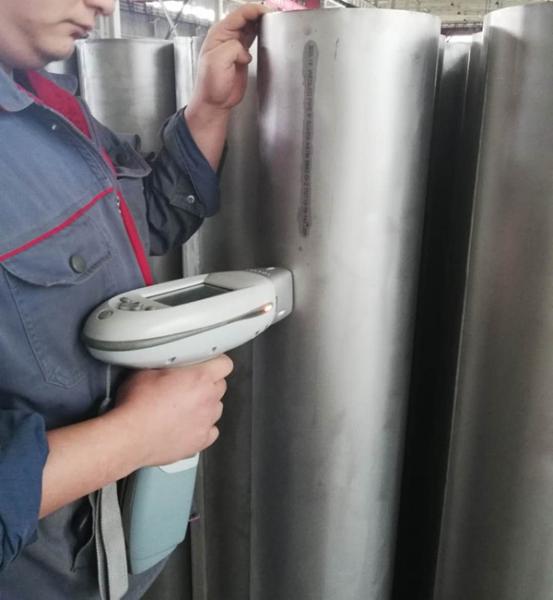

Quality inspection: stain inspection, entrust third party inspection

Supply standard:
GB/T3624-2007 ASTM B337 Seamless and welded titanium and titanium alloy tubes

GB/T3625-2007 ASTM B338Titanium and titanium alloy tubes for heat exchangers and condensers

Performance: Titanium tube light weight, high strength, mechanical, excellent performance.

Mechanical properties

Mechanical Properties(>%)
Grade Tensile Strength(min) Yeild Strength(0.2% offset)) Elongation(%)
ksi MPa Min Max
Ksi Mpa Ksi Mpa
1 35 240 25 170 45 310 24
2 50 345 40 275 65 450 20
3 65 450 55 380 80 550 18
7 50 345 40 275 65 450 20
9 90 620 70 483 - - 15C
12 70 483 50 345 - - 18C

Chemical composition

Chemical composition
Grade N C H Fe O Al V Ti Other , max
1 0.03 0.08 0.015 0.20 0.18 / / Bal 0.4
2 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
3 0.05 0.08 0.015 0.30 0.35 / / Bal 0.4
7 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4
9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 Bal 0.4
12 0.03 0.08 0.015 0.30 0.25 / / Bal 0.4

Tube surface and tolerance requirements

Nominal Diameter Permissible Variations in Outside Diameter
Over Under
1/8 to 11/2 (3.2 to 38mm).incl 0.397mm 0.794mm
Over 1 1/2 to 4in (38 to 102mm).incl 0.794mm 0.794mm
Over 4 to 8in (102 to 203mm.incl) 1.588mm 0.794mm
Over 8 to 12in (203 to 305mm.incl) 2.382mm 0.794mm

FAQ

1. Are you the manufacturing or trading company?

Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.

2. Do you have a dedicated R & D team? Can you design a product for us?

We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM or other you asked.

3. Can you provide samples? Is there a charge?

Samples can be provided for a fee.

4. What is your payment method?

We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.

5. How long is your delivery time?

Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.

6. After-sales products, how to deal with problems?

Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:

1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.

2) 5% is an unexpected situation and the extension of the construction period.

3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.

7. What is your company's response to the product in question?

1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.

2) We are 100% responsible for problems caused by damaged packaging during transportation.
