Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Specifications
Brand Name :
Changsheng
Model Number :
Seamless Titanium Tubes
Certification :
ISO9001:2015
Place of Origin :
Shaanxi, China
MOQ :
5kg
Price :
USD 19.0/KG - USD 28.0/KG
Payment Terms :
L/C, T/T
Supply Ability :
30 Tons per Month
Delivery Time :
3-5 work days
Packaging Details :
Soft film wrapped inside, export standard crate outside.
Material :
Pure titanium Grade 1
Diameter :
OD19mm
Wall Thickness :
0.5mm
Surface :
Pickling surface
Shape :
Titanium Round Tube
Tubes Type :
Seamless tubes, Welded tubes
Standard :
ASTM B338
Supply State :
Anealed
Application :
Heat exchanger, condenser, evaporator, chiller
Advantage :
Good welding propertity, Ligh weight, Corrosion Resistance
Lead time :
We stock a large and varied inventory, 3-5 work days
Description

Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling

Material: Pure Titanium Grade 1
Standard: ASTM B338
Shape: round tubes
Outside diameter: 19.0mm
Wall thickness: 0.5mm
Supply state: Annealed
length within:12m
Cooling medium: sea water

Application: heat exchanger, condenser, evaporator, chiller, etc,.

Notes: Other dimensions will be supplied upon request.

Detailed Information in Form:

Item name Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Cooling Media Sea Water
Material Pure Titanium Grade 1
Type Seamless tubes, and welded tubes
Standards ASTM B338
Shape Round tubes with plain ends
Dimension OD 19.0mm x Wall thickness 0.5mm x Length
Length max.12m, or as per clients request
Surface Pickling surface
Test Eddy current inspection, Hydraulic test, Ultrasonic test

Why choose titanium tubes?

  1. Under the same operating conditions, the wall thickness of titanium tube is thinner and the quantity of tubes are less. Generally, for copper alloy tubes and other material tubes, wall thickness is aound 0. 9 mm - 1. 2mm, while, by using titanium tubes, the tube wall thickness could be 0.5mm.
  2. Titanium tube has good thermal conductivity.The thermal conductivity of titanium is 17W/(m·k), Copper is 29W/(m·k). Titanium has the lowest thermal conductivity.
  3. The use of titanium tube is more cost-effective. The price of titanium tube can compete with that of copper alloy tube. Due to the low density of titanium and the same wall thickness, the mass of titanium tube of the same length is only 50% of that of copper alloy tube. When the wall thickness of titanium tube is 50% of that of copper alloy tube, the mass of titanium tube with the same heat transfer area is only 1/4 of that of copper alloy tube. Titanium tube is competitive in price.
  4. Titanium tubes have a longer service life. Because seawater is often mixed with sediment and marine organisms, they attach in the heat transfer pipe and pipe end, which will erode the copper alloy tube.
Industrial Applications of Titanium Tubes:
Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Mechanical Properties of Titanium Tubes:
ASTM Grade
Alloy composition
Tensile strength
Yield strength
Elongation %
ksi
Mpa
ksi
Mpa
GR1
Unallyed Ti(Pure)35A-CP1
35
240
25
170
24
GR2
Unallyed Ti(Pure)50A-CP2
50
345
40
275
20
GR5
Ti 6Al 4V
130
895
120
828
10E
GR7
Ti-Pd
50
345
40
275
20
GR9
Ti 3AI 2.5V
90
620
70
483
15F

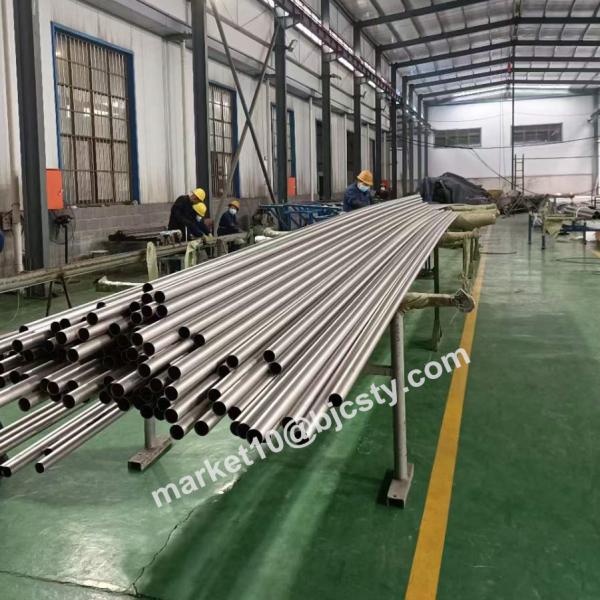

The first picture is pickling surface and seamless tubes. For heat exchanger tubings, the tube surface is usually pickling surface, the purpose of pickling is to remove the oxide skin produced after annealing of titanium tubes, a key process to ensure the quality of the tubes.

Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
The second picture is pickling surface and welded titanium tubes.
Dia19mm X 0.5mm Titanium Tubes GR1 Seawater Condenser For Cooling
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.
