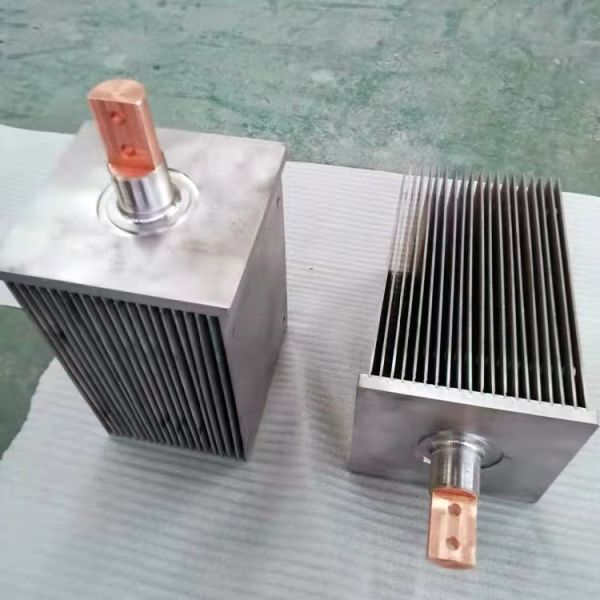

titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
Specifications
Brand Name :
CSTI
Model Number :
RUTHENIUM COATING SERIES TITANIUM ANODE-20221104
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1 Piece
Price :
$100.00 - $1,000.00/ Piece
Payment Terms :
T/T, L/C
Supply Ability :
100000 Set/Sets per Month
Delivery Time :
10~25 work days
Packaging Details :
1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases.
Substrate :
Pure Titanium(Gr1)
Coating :
RuO2
Current Density :
≤10000A/㎡
Coating Thickness :
≥10μm
Oxygen evolution potential :
Chlorine evolution potential≥1.13V(relative to calomel electrode)
Application :
Chlor-alkali industry, diaphragm process for alkali production, Chlorate industry, acidic water electrolysis, sea water electrolysis, Sterilization for circulating water in power plant, metal electrodeposition, Ion water electrolysis, electrodialysis
Description

Titanium electrode for electrolysis ruthenium coating series

Substrate: Pure Titanium(Gr1)
Coating: RuO2
Coating Content: ≥10g/㎡
Coating Thickness: ≥10μm
Current Density: ≤10000A/㎡
Chlorine evolution potential≥1.13V(relative to calomel electrode)

CHLORINE PRODUCTION OF SODIUM HYPOCHLORITE GENERATOR

Current Density A/m2 Chlorine ion content ppm Chlorine production g/h.㎡
300-500 3000-5000 850--1050

titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series

titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series

titanium electrode for electrolysis Metal Electrodeposition Ruthenium Coating Series
Baoji city changsheng can provide Life Test
Coating X-Ray Test
Coating Thickness Test
Helium Leak Detection Test,
Contact Resistance Test
Performance Test and other test.

Feature

1. good corrosion resistance and pole reversal performance

2. High current efficiency and low energy consumption.

3. Long working life,can use more than 8 years in Chlor-alkali industry

4. Substrate can be reused

Test data in Chlor-alkali industry

1. Chlorine evolution potential ≥1.13V

2. Chlorine evolution polarizability: ≤40MV

3. Strengthening life test: ≥3000min

Current Density: ≤10mg

4. Strengthening weight lessness: ≤10mg

Application

Chlor-alkali industry, diaphragm process for alkali production, Chlorate industry, acidic water electrolysis, sea water electrolysis, Sterilization for circulating water in power plant, metal electrodeposition, Ion water electrolysis, electrodialysis etc.
