ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm
ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm
ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm
ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm
ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm
ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm
Specifications
Brand Name :
Changsheng
Model Number :
Seamless Titanium Tube
Certification :
ISO9001:2015
Place of Origin :
Baoji City, China
MOQ :
10 kg
Price :
USD48.0/kg - USD51.0/kg
Payment Terms :
L/C, T/T
Supply Ability :
60 Tons per Month
Delivery Time :
3-5 work days
Packaging Details :
Soft film wrapped inside, export standard crate outside.
Material :
CP Titanium Grade 1
Standard :
ASTM B338 ASTM B861
Supply State :
Annealed
Diameter :
3mm-247mm
Applications :
Oil, Marine, Petrochemical, Power plant, machining, sports
Advantages :
Competitive price, short lead time and on-time delivery
Inventory :
Large quantity in stock
Key Word :
Titanium Tube Leading Exporter
Description

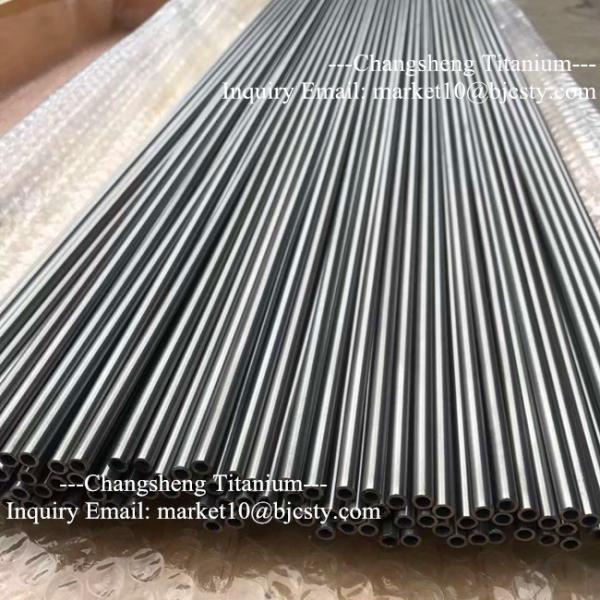

ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm

OD6mm seamless titanium tubes are one of the best-selling export seamless tubes. Supplied in annealing state, Gr1 titanium tubes could be easily bend, welding, drilling, coloring and other usage that you need. Light weight, high strength, anti-corrosion, non-magnetic, biocompatibility, environmentallly friendly, recyclable are all the shining features of titanium tubes.

We offer the widest range of titanium tube and titanium pipe in Grade, dimensions and standards. Seamless Titanium Tube and Seamless Titanium Pipe dimension range is from a wall thickness as low as 0.5 mm and lengths up to 12000 mm by diameter of 3mm to 247mm. Besides round tubes, we also supply seamless square tubes and rectangular tubes. Contact us now for the latest in titanium tube prices and availability.

Titanium tube and titanium pipe are manufactured in compliant with international standards and specifications and under the highest level of quality control. Chemical composition, tensile strength, yield strength, elongation, and hardness are fully tested independently. At the same time, we can offer waterjet cutting, drilling, bending, bevel end finshing, welding and other services as per clients special requests.

Detailed Information of OD6mm Titanium Tube
Material Commercially Pure(CP) Titanium in Grade 1
Production Standard ASTM B338, ASTM B861
Outside Diameter 6mm
Wall Thickness 0.5mm, 0.8mm, 1.0mm, 1.2mm
Length As per client’s request, single tube length can be 500mm, 1000mm, 6000mm, etc,.
Tube Surface Pickling surface, Polished bright surface
Supply State Annealed
Inventory In stock, ensure the shortest lead time
Applications Cooling pipe, heat exchange tubing, Jewelry, sporting goods, machinery equipment, electroplating equipment, environmental protection equipment, golf and precision processing and other industries, etc,.

Titanium Tube Facotry Production Capability

The tabulation below provides a summary overview to the production capability.

  • Production standard: ASTM B338, ASME SB338, ASTM B861, ASME SB861
  • Titanium Grades: Gr 1, 2, 3, 4, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), 12, 23(6AL-4V ELI),etc,.
  • Titanium Tube Dimensions: Outside Diameter: 3mm – 247 mm, Length: 1000 – 12000 mm, Wall thickness: min. 0.5mm.
  • Titanium Tube Surface Finishes: Pickling, Polished, Grinded, Sandblasted
  • Services offered: Waterjet cutting, laser cutting, welding, shape cutting, drilling, bending, bevelling, etc,.

Material

 Types

Specification

Grades

Titanium

Seamless and Round Tubes

ASTM B338 ASTM B861

Gr1/Gr2/Gr4/Gr5/Gr7/Gr9/Gr11/Gr12/Gr16/Gr17/Gr23,etc,.

Titanium

 Seamless and Square Tubes

ASTM B861

Gr1/Gr2/Gr5/Gr9/Gr12

Titanium

 Seamless and Rectangular Tubes

ASTM B861

Gr1/Gr2/Gr5/Gr9/Gr12

Titanium Metal Products Characteristics

Titanum tube is used in a wide range of applications. It can be found in applications needing the very blending of weight and strength and harsh environment. Titanium tube and pipe characteristics can be summed up by:

  1. Ti tube has an excellent corrosion resistance properties;
  2. Ti tube has a low density and light weight;
  3. Ti tube and pipe have high strength;
  4. Titanium has high / low temperature resistance and excellent for use in extreme conditions;
  5. Titanium is non-mangnetic, non-toxic;
  6. Titanium is recyclable, environmentally friendly.

Mechanical Properties of of Titanium Pipe (Min.)

Grade

Alloy composition

Tensile strength

Yield strength

Elongation %

ksi

Mpa

ksi

Mpa

GR1

Unalloyed Ti(Pure)35A-CP1

35

240

25

170

24

GR2

Unalloyed Ti(Pure)50A-CP2

50

345

40

275

20

GR4

Unalloyed Ti(Pure)80A-CP4

80

550

70

483

15

GR5

Ti 6Al 4V

130

895

120

828

10

GR7

Ti-Pd

50

345

40

275

20

GR9

Ti 3AI 2.5V

90

620

70

483

15F

GR12

Ti-0.3Mo-0.8Ni

70

483

50

345

18

Titanium tube and titanium pipe offer a combination of high strength, light weight, weldability, formability and corrosion resistance which have made it a most common used high temprature metal material for chemical processing, oil&gas, shipbuilding, aerospace industry, power plants, marine engineering, seawater desalination, sewage treatment, electroplating, metallury, metal fabricating industries.

Due to customization, please contact us for satisfying your individualized requirement!

Titanium Tube and Pipe Appliactions

Titanium tube is widely used in heat exchangers and reaction towers in the petrochemical industry, they are also used extensively in wet chlorine coolers, ion exchange membrane electrolyzers, dechlorination towers and chlorine cooling scrubbers, automobile industry, paper pulp production, fertilizer production, fiber production, and in electrochemical and desalination processing. Titanium pipes are also widely used as cooling pipes, titanium is used for external cooling, pumps and heat exchangers. Thanks to its excellent corrosion resistance but also because of the heat transfer efficiency.

Titanium Tube Workshop

ASTM Grade 1 CP Titanium Tube Annealed Seamless Tubing OD6mm ID4mm

Tags: OD6mm Titanium Tube, CP Titanium Tubes, Heat Exchanger Titanium Tubing
