Niobium Plate 3mm Thick Nb Sheet 99.95% R04210 ASTM B393 Vacuum Annealing
Niobium Plate 3mm Thick Nb Sheet 99.95% R04210 ASTM B393 Vacuum Annealing
Niobium Plate 3mm Thick Nb Sheet 99.95% R04210 ASTM B393 Vacuum Annealing
Niobium Plate 3mm Thick Nb Sheet 99.95% R04210 ASTM B393 Vacuum Annealing
Specifications
Brand Name :
Changsheng
Model Number :
Niobium Plate 3mm Thick Nb Sheet
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1kg
Price :
USD160.0/kg - USD170.0/kg
Payment Terms :
L/C, T/T
Supply Ability :
30 Tons per Month
Delivery Time :
7-15 work days
Packaging Details :
Soft film wrapped inside, export standard crate outside.
Product :
Niobium Plate 3mm Thick Nb Sheet 99.95%
Material :
Niobium R04210 Nb 99.95% Purity
Thickness :
3mm
Standard :
ASTM B393
Applications :
Semiconductor materials, vacuum coating, sintering trays and boats,chemical applications.
Supply State :
Bright and Vacuum annealing
Material Advantages :
High purity, anti-corrosion, high temperature resistance
Product Advantages :
Uniform density, smooth and bright surface
Key Word :
3mm Niobium Plate 3N5
Description

Niobium Plate 3mm Thick Nb Sheet 99.95% R04210 ASTM B393 Vacuu​m Annealing

Niobium plate and niobium sheet are a cold rolled and vacuum annealed product made up of niobium. The commercially pure niobium R04210 products are used in high end applications such as superconductors, vacuum coating, thermal protection and structural materials, electric vacuum devices, anodizing, and medical fields. As one of the leading supplier of the niobium plate and niobium sheet in different grades and dimensions. We supply various forms of the nioubium sheets such as the coils, foils and strips. 3mm thickness niobium sheet has become one of our star export product, and won the praise of customers.

Niobium Sheet Specifications

Product Name Niobium plate, sheet, strip and foil
Symbol Nb
Purity 99.95%
Designation R04210
Specifications 3mm x 650mm, 3mm x 880mm, etc,. In compliance with standard specifications or according to the actual needs of customer’s design and production
Production Standard ASTM B393
Properties High purity, corrosion resistance, high temperature resistance, stamping, bending, welding, good plasticity, good electrical conductivity
Due to customization, foil in coil or in flat sheet are both ok, please contact us for satisfying your individualized requirement!

Niobium Sheet Supply Dimensions

Supply Dimensions(mm)
Thickness Width Length Products Condition
0.1~0.5mm Max. 450mm 100~10000mm

Nb Strip

Nb Sheet

 Vacuum Annealing
0.5~0.8mm Max. 450mm 50~2000mm
0.8~2.0mm Max. 900mm 50~2000mm

Niobium Plate

Niobium Sheet
2.0~6.0mm Max. 900mm 50~1500mm
＞6.0mm Max. 1000mm 50~1500mm

Niobium Sheet, Plate Features

As a high-temperatures and corrosive material, R04210 niobium roll, with 3N5 purity, vacuum annealing, advantages be below listed.

1. High purity(99.95%)

2. Corrosion resistance

3. High temperature resistance

4. It can be stamped, bent and welded

5. Good plasticity

6. Good electrical conductivity

7. Custom width, free slitting services

8. Uniform density

9. Smooth and bright surface

10. Competitive price with short lead time

More Information of Niobium Metal

Niobium, formerly columbium, is a chemical element with the symbol Nb and atomic number 41. It is a soft, grey, ductile transition metal. Niobium has physical and chemical properties similar to those of the element tantalum. It was not until the early 20th century that niobium was first used commercially. Niobium is used mostly in alloys, the largest part in special steel such as that used in gas pipelines. Although alloys contain only a maximum of 0.1%, that small percentage of niobium improves the strength of the steel. The temperature stability of niobium-containing superalloys is important for its use in jet and rocket engines. Niobium is used in various superconducting materials. These superconducting alloys, also containing titanium and tin, are widely used in the superconducting magnets of MRI scanners. Other applications of niobium include its use in welding, nuclear industries, electronics, optics, numismatics and jewelry. In the last two applications, niobium's low toxicity and ability to be colored by anodization are particular advantages.

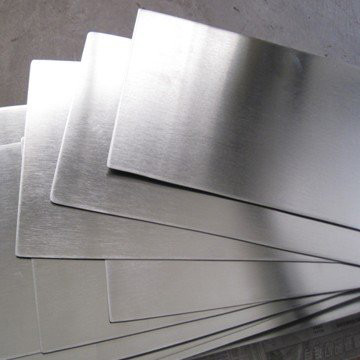

Bright Surface Niobium Sheets
Niobium Plate 3mm Thick Nb Sheet 99.95% R04210 ASTM B393 Vacuum Annealing

Tags: 3mm Niobium Sheet, Superconductor Niobium Sheet, 3N5 Niobium Plate
