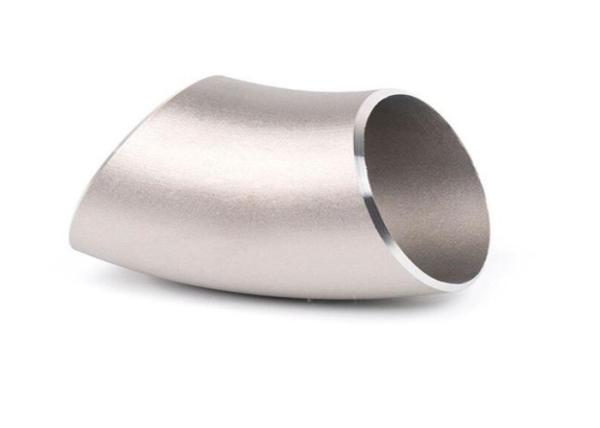

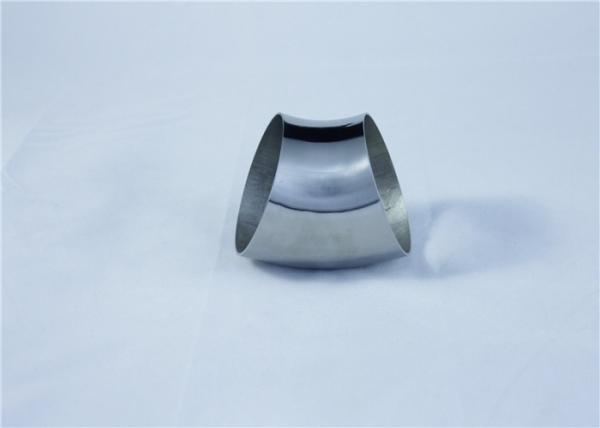

CNC Machining Titanium Elbow Pipe Fitting Ti Parts 45° 90° ASTM B363 WPT2

Product description:
The most applied version is the 90° long radius and the 45° elbow, while the 90° short radius elbow is applied if there is too little space.

The function of a 180° elbow is to change direction of flow through 180°. Both, the LR and the SR types have a center to center dimension double the matching 90° elbows.

These fittings will generally be used in furnesses or other heating or cooling units.
Dimensions, dimensional tolerances and more images, can be found in the main Menu "Fittings".
In addition to the defined elbows, there is the Reducing Elbow, which is a elbow with various diameters on the ends. Because this elbow, for many suppliers it is not a standard item, and thus probably a high price with a long delivery time, the use of a "normal" elbow with a separate reducer is an option if the situation allows.

Type for choose:

Elbows 45° - 90° - 180° LR/SR
The function of a 45° elbow is the same as a 90° elbow, but the measurement of dimensions is different to that of the 90° elbow.

Why Titanium?

Grade 5 titanium properties are that of a Chemical Composition of O Max 0.2, Al 6, Ti 90, Fe Max 0.25 and V 4. The Density of Grade 5 titanium is 4.43 g/cc (0.16 lb/in³). has the characteristics of low density, high strength-to-density ratio ,corrosion resistance, It has been researched ,developed and used in many appication fields.

How to processing?

All work pass the strict contorl and test to ensure Perfectly parts for customer.

Cutting, Heating&squeeze casting, Forging, Drilling (If need), Machining, Rolling thread, Washing, Anodizing color (If need), Manual+machines inspection, and finally to Package.

How to measurement?

Here below, for example, you will find the center to face distance of NPS 2 elbows (the A distance on the image).
1. 90° - LR = 1.1/2 x 2(NPS) x 25.4 A=76.2 mm
2. 180° - LR = 2 times the 90° LR elbow A=152.4 mm
3. 90° - SR = 2(NPS) x 25.4 A=50.8 mm
4. 180° - SR = 2 times the 90° SR elbow A=101.6 mm

3D elbows as an example, are calculated with:
3(D) X 2(NPS) X 25.4
