45° 90° 180° Elbow Plain Both Ends Titanium For Tube Fitting Connection

Product description:
TI6AL4V
16 gauge

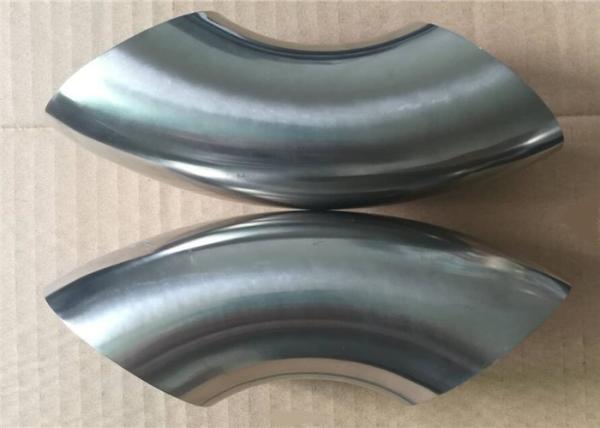

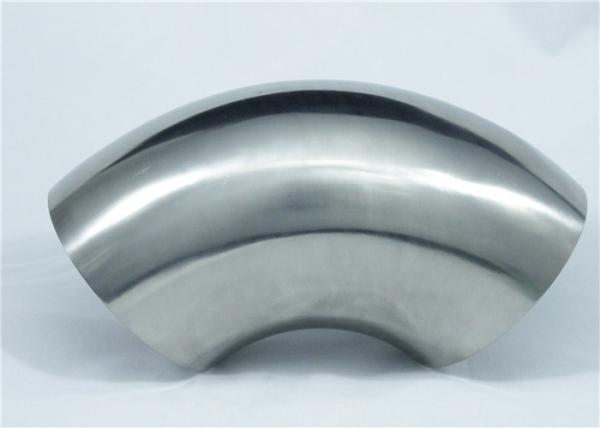

90° tight radius elbow, plain both ends
Diameter: 5.0”, Radius: 5.0”
Center to end length: 9.0”

Outside Diameter (O.D.) 1.315 in.
Pipe Size or Tube Size 1" PIPE
Thickness .125"
Wt.Ea. 0.58 lb.
Degree 90 °
Centerline Radius 2.66 in.
Inside Radius 2 in.

Type for choose:

Elbows 45° - 90° - 180° LR/SR
The function of a elbow is to change direction or flow in a piping system. By default, there are 5 opportunities, the 45°, 90° and 180° elbows, all three in the "long radius" version, and in addition the 90° and 180° elbows both in the "short radius" version.

Elbows are split into two groups which define the distance over which they change direction; the center line of one end to the opposite face. This is known as the "center to face" distance and is equivalent to the radius through which the elbow is bent.
The center to face distance for a "long" radius elbow, abbreviated LR always is "1.1/2 x Nominal Pipe Size (NPS) (1.1/2D)", while the center to face distance for a "short" radius elbow, abbreviated SR even is to nominal pipe size

Why Titanium?

Grade 5 titanium properties are that of a Chemical Composition of O Max 0.2, Al 6, Ti 90, Fe Max 0.25 and V 4. The Density of Grade 5 titanium is 4.43 g/cc (0.16 lb/in³). has the characteristics of low density, high strength-to-density ratio ,corrosion resistance, It has been researched ,developed and used in many appication fields.

How to processing?

All work pass the strict contorl and test to ensure Perfectly parts for customer.

Cutting, Heating&squeeze casting, Forging, Drilling (If need), Machining, Rolling thread, Washing, Anodizing color (If need), Manual+machines inspection, and finally to Package.

Measurement as below for reference.
