Clean Room Regular Stoving Varnish Steel Clean Door With Single Glass Window And ISO
Clean Room Regular Stoving Varnish Steel Clean Door With Single Glass Window And ISO
Clean Room Regular Stoving Varnish Steel Clean Door With Single Glass Window And ISO
Clean Room Regular Stoving Varnish Steel Clean Door With Single Glass Window And ISO
Specifications
Place of Origin :
wuhan, China
Packaging Details :
Pack the pass box in a wooden case, then put the wooden case into a container.
Supply Ability :
100 Set/Sets per Month
Price :
$250.00/sets 1-19 sets
Brand Name :
OEM
Warranty :
1 Year
Surface Finishing :
Finished
Opening Method :
Electric Side Opening
After-sale Service :
Online technical support
Project Solution Capability :
graphic design, total solution for projects, Cross Categories Consolidation
Application :
Hospital/Clean Room/Laboratory/Plants
Design Style :
Traditional
Specification :
Regular, Non-Standard, Customized
Material :
SUS304 Stainless Steel Wire Drawing Plate
Filler :
Flame retardant paper honeycomb, Aluminum honeycomb, Rock wool, PU
Window :
Square, Oval, Single Glass, Double Printing Glass
Surface treatment :
Wire drawing, stoving varnish
Function :
Manual, Automatic
Sealing :
Sealing strip
Colors :
Customized colors
Type :
Interior Door
Description

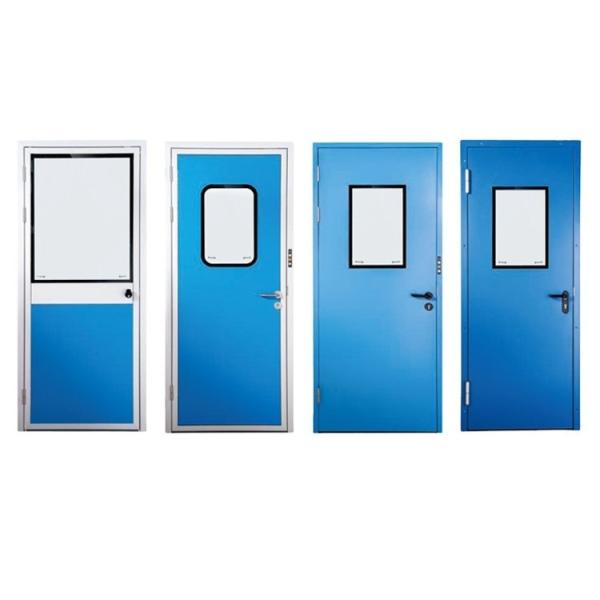

Clean Room Regular Stoving Varnish Steel Clean Door with Single Glass Window and ISO

Product Overview

Comparable Price High Quality Stoving Varnish Steel Clean Door for Clean Room with ISO
Performance:
The steel door frame and door panel are made by the compact production method and the surface is electrostatically sprayed. The product has no abutted seams, no welding spots, no dead angles and it is wholly flat and smooth, easy to be cleaned and free of dust accumulation, the door is made of high-grade rubber sealing strips on three sides, and the bottom is made of automatic lifting and sweeping strips, so it has strong air tightness and effectively ensures the indoor purification effect; the observation window is made of double-layer tempered glass, surrounded by two centimetres printing black edges (white edges), and the glass is flush with the surface of the door panel, that is, it is sealed, firm and beautiful; the thickness of the door panel is 40mm, 50mm, and the door core is filled with high-strength flame-retardant core material, which fully meets the fire prevention requirements of the purification workshop.
The wall suitable for installation of this door is 50mm-100mm hand-made color plate and various sizes of civil construction wall. The door frame and the wall are connected by central aluminum connectors, which is easy to operate, and the door frame is flush with both sides of the wall. It is the best choice for the purification workshops from the perspective of either strength and aesthetics. The product size, material and special requirements can be customized according to customer needs.
Use:
Suitable for color plates, civil construction walls, lightgage steel joist structures, etc.
Characteristics:
It has good sealing performance, high strength, easy opening and flexible installation. The door frame and color plate are connected by the central aluminum connectors. The door frame is flush with both sides of the wall, and the thickness of the partition wall, product size, material and special requirements can be customized according to the application requirements.
FEATURES AT A GLANCE
Clean Room Regular Stoving Varnish Steel Clean Door With Single Glass Window And ISO
Stoving Varnish Steel Clean Door
Flat frame Type
Material:
SUS304 stainess steel wire drawing plate, color plate, stoving varnish steel and melamine resin plate for door frame;
SUS304 stainless steel wire drawing plate, color plate and stoving varnish steel for door leaf
Item
Technical Parameter Description
Door Frame Shape
Flat frame type, encircle frame type, clamping type, plug-in type (customized according to customer requirements)
Material
Electrogalvanized steel plate, 1.5mm for door frame, 1.0mm for door panel,1.2mm for inner reinforcing plate
Filler
Flame retardant paper honeycomb
Fireproof aluminum honeycomb
Rock wool
Polyurethane foam
Door Leaf Window
Square Glass
Oval glass
Square outside and round inside glass
Single, double galss
Hardware Accessories
Locks: separate execution lock, compact execution lock, elbow press lock, escape lock, touch bead lock, etc.
Hinge: detachable type, semi-hidden adjustment type, spring hydraulic type, hidden type, etc.
Sealing device: door leaf self-adhesive type, door frame embedded type, door bottom automatic lifting type.
Surface Treatment
Spraying (outdoor fluorocarbon powder, electrostatic powder), stoving varnish, paint-free (color can be customized according to
the customer requirements)
Wind Resistance Performance P3(KPa)
2.8 Air Pressure 100.8KPa
Airtightness q1=1.0 -q1=0.6
q(m³/(m-h)) q2=2.1 -q1=1.5
Door Leaf Weight m²/KG
Paper honeycomb
Aluminum honeycomb
Rock wool
Polyurethane
21.5KG
22.3KG
24.5KG
26.0KG
