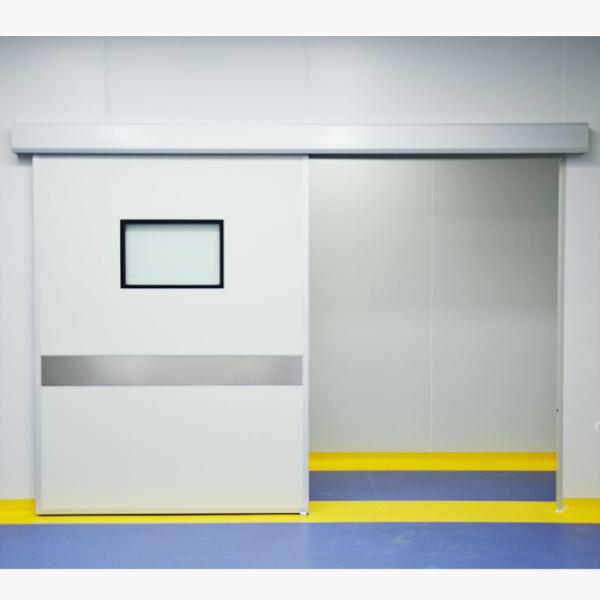

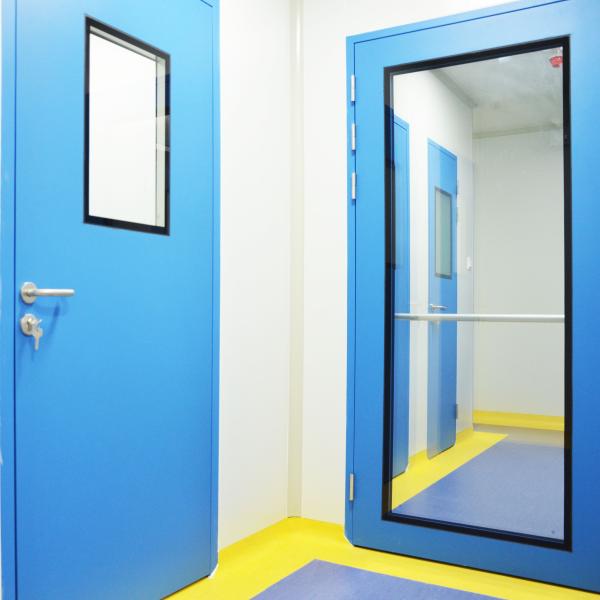

Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
Specifications
Place of Origin :
wuhan, China
Brand Name :
OEM
Packaging Details :
Wooden Case, Galvanized Steel Pallet, Plastic Film
Supply Ability :
1000 Set/Sets per Month
Price :
$100.00 - $180.00/sets
MOQ :
2
Door Material :
Stainless steel
Screen Netting Material :
Stainless steel, Plastic
Warranty :
1 Year
Feature :
Thermal Insulation
Surface Finishing :
Finished
Opening Method :
Push and Pull
Door Type :
Polymer
After-sale Service :
Return and Replacement, Online technical support
Project Solution Capability :
graphic design
Application :
Laundry, Clean Room
Design Style :
Modern
Size :
Customized Size
Material :
Stainless Steel 304
Product name :
Stainless Steel Door
Color :
Customized Color
Hardware :
Chinese Top Brand
Name :
Metal Steel Door
Function :
Environmental Protection
Certificate :
ISO9001 CE
Design :
Canbe Customized
Port :
Shanghai/Wuhan
Description
Cleanroom Sandwich Panel Door with Interlocking System by Chinese Top Hardware
Cleanroom Doors
Item
Technical Parameter Description
Door Frame Shape
Flat frame type, encircle frame type, clamping type, plug-in type (customized according to customer requirements)
Material
Electrogalvanized steel plate, 1.5mm for door frame, 1.0mm for door panel,1.2mm for inner reinforcing plate
Filler
Flame retardant paper honeycomb
Fireproof aluminum honeycomb
Rock wool
Polyurethane foam
Door Leaf Window
Square Glass
Oval glass
Square outside and round inside glass
Single, double galss
Hardware Accessories
Locks: separate execution lock, compact execution lock, elbow press lock, escape lock, touch bead lock, etc.
Hinge: detachable type, semi-hidden adjustment type, spring hydraulic type, hidden type, etc.
Sealing device: door leaf self-adhesive type, door frame embedded type, door bottom automatic lifting type.
Surface Treatment
Spraying (outdoor fluorocarbon powder, electrostatic powder), stoving varnish, paint-free (color can be customized according to
the customer requirements)
Wind Resistance Performance P3(KPa)
2.8 Air Pressure 100.8KPa
Airtightness q1=1.0 -q1=0.6
q(m³/(m-h)) q2=2.1 -q1=1.5
Door Leaf Weight m²/KG
Paper honeycomb
Aluminum honeycomb
Rock wool
Polyurethane
21.5KG
22.3KG
24.5KG
26.0KG


Features:

1. High sealing performance: To ensure the cleanliness and stability of the internal environment of the cleanroom.
2. Smooth surface: Facilitates easy cleaning and reduces the accumulation of dirt and bacteria.
3. Anti-static material: Prevents the generation and accumulation of static electricity, reducing the impact on sensitive electronic components.
4. Durable construction: Made of high-quality materials to withstand frequent use and harsh conditions.

Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System



Applications:

1. Pharmaceutical industry: Maintaining a sterile environment for drug production.
2. Electronics manufacturing: Protecting sensitive electronic components from contamination.
3. Hospitals and laboratories: Ensuring the safety and purity of medical and research processes.

Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System

Advantages:

1. Improved product quality: Reduces the risk of contamination, leading to higher-quality end products.
2. Energy efficiency: Helps maintain a stable temperature and humidity, reducing energy consumption.
3. Enhanced safety: Prevents the entry of external pollutants and protects workers' health.
4. Long service life: Low maintenance requirements and reliable performance over time.

Packaging and Transportation:

1. The cleanroom doors are carefully wrapped with protective materials to prevent scratches and damage during transportation.
2. They are placed in sturdy crates or container

Cleanroom Fireproof Cleanroom Door Sandwich Panel Door With Interlocking System
