TK450 Universial Bridge S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge Long Span
TK450 Universial Bridge S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge Long Span
TK450 Universial Bridge S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge Long Span
TK450 Universial Bridge S460J0 BS5400 HA+20HB Extra Wide Heavy Load Bailey Bridge Long Span
Specifications
Brand Name :
Tongkai
Model Number :
Universal bridge
Certification :
ISO,EN1090,SGS ,CIDB
Place of Origin :
China
MOQ :
1 set
Price :
1500USD ~2000USD/ton
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000/month
Delivery Time :
15~45days
Packaging Details :
Nude and Steel case
Material :
S460J0,S355JR,S355J0,Gr65,Gr50
Load :
HA ,HB,HA+20HB，AASHTO HL-93,HS35-44
Lane :
Single lane 3.15m~4.2m，Double Lane 7.35m, three lane 10.5m
Surface Finish :
Pained or Galvanized
Span :
upto 81m
Description

PRODUCT DESCRIPTION

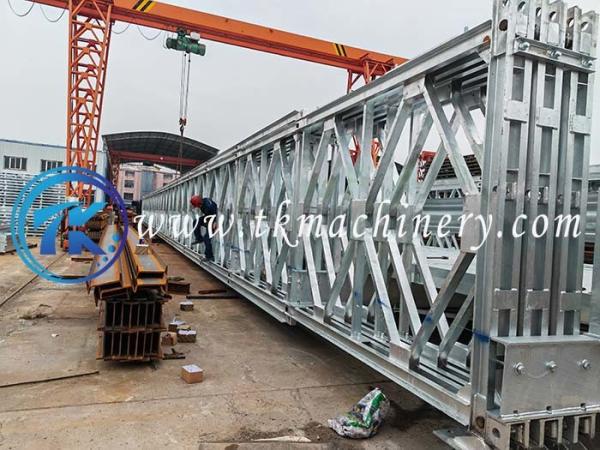

TK 450 Bridge is the large size of ZB200, it is a robust modular bridging system designed to cope with the heavy-duty vehicles used in construction, mining, oil and gas and extractive industries, and is available for both permanent and temporary applications.

TK450 Bridge uses standardized components, or super panel and a selection of decking systems to create a versatile heavy-duty modular steel bridge system with a clear spanning capability of up to 81m. Achievable span lengths, in span increments of 2.25m or 4.5m , vary according to loading but multiple span structures supported on intermediate piers mean that the suitability of the Mabey Universal™ is not restricted by length of crossing.

Its unique combination of pre-engineered modular components, simple pinned / bolted connections, heavy load capability and robust design makes the system ideal for use as a stock bridge system in country.

APPLICATION

  • Permanent or semi-permanent bridging
  • Long span bridging
  • Rural infrastructure project
  • Urban traffic project
  • Humanitarian aid and disaster relief operation
  • Pedestrian bridging
  • Services pipelines
  • Construction site access
  • Replacement of damaged bridge
  • Emergency response stock

Features

  • Modular
  • Rapid-build
  • Can be assembled using light plant

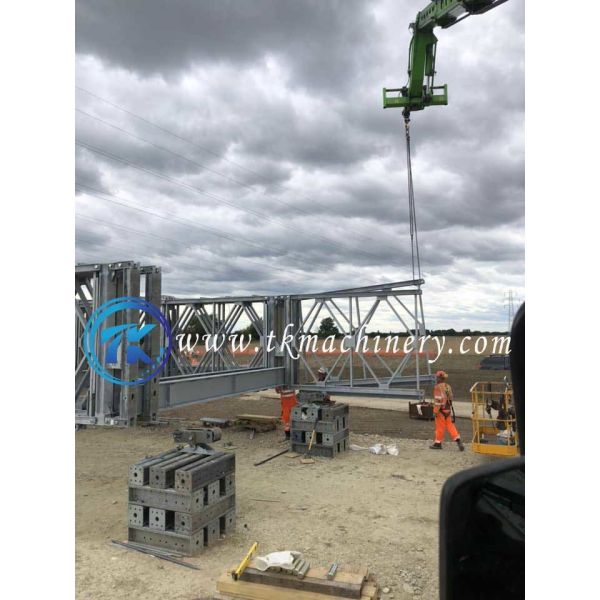

  • Can be crane built or cantilever launched
  • Relocatable
  • Transport in standard containers
  • Long span capability
  • Single and multi-span solutions available
  • Robust
  • High fatigue capability
  • Heavy axle / Wheel load capacity
  • Long life with minimal maintenance
  • Optional ramps, footwalks, piers, parapets and barriers
  • Various deck options available

Technical Specification

Span

27m upto 81m
Road Width

single lane 3.15m/4.2m ; double lane 7.35m
Material Grade S460J0,S355JR,GR65,GR50
Load Capacity HL-93,HS25-44, HA ,HA+20HB
Surface Finish Painted or Galvanized
Joint System Pin and Bolt System
Erection Method

Crane lifting , Cantilever Launching Method
