Specifications
Brand Name :
Tongkai
Model Number :
TK200
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets+month
Delivery Time :
15~30days
Packaging Details :
Packing belt , Steel case
Width :
3.15m~7.35m
Span :
9m~60m
Loading :
HS15,HS20-44,HS25-44, HA,HA+HB ....
Surface :
Painted or Galvanzied
Truss Size :
2214mm*3048mm
Material Grade :
S355Jr, S450J0,Gr65,Gr50..
Description

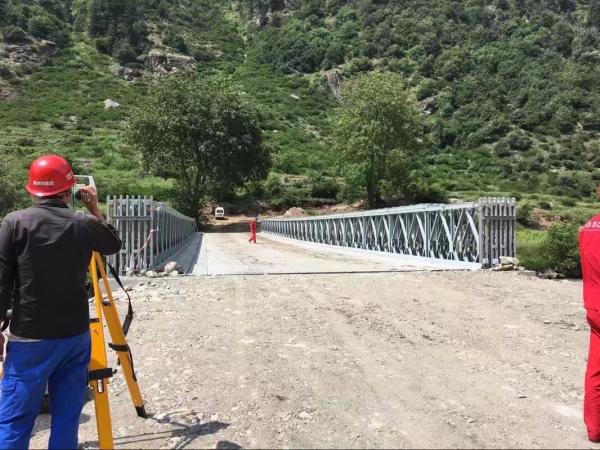

The design of TK200 bailey Bridge allows the system to be used in a logistic role throughout the support area. As a Line of Communication bridge it can carry loads of up to Class 110 over gaps of up to 60m (200ft). The bridge is ideally suited for areas where speed of deployment is vital.

Specification:

* Model : ZB200 bailey bridge ,Double Lane

* Width: 7.35m

* Single Span :9~60m

* Loading : HS15,HS-20-44 ,HS25-44 ,HL93 , HA ,HA+HB, trailers, caterpillers,half-track-vehicle

Features :

• Modular, pre-engineered, pre-fabricated bridge system

• Highly adaptable, fully reusable and re-locatable

• Transported in standard ISO containers

• Quick and simple to build using labour

• Fully galvanized for long life and minimum maintenance

• 3.048m module length

• 4.2m (single lane ), 7.35m (double lane)

• 0.5m ,1m and 1.5m perdestrian footways

• Proprietary steel decking systems to suit different loading requirements

• Durbar finish or factory applied anti-skid surfacing

• Full highway load carrying capability

• Simple, cost effective foundations

SECTION PROPERTIES(ONE TRUSS)

CONST. SECTION PROPERTIES

SECTION AREA OF CHORD

(cm2)

BENDING FACTOR

(cm3)

MOMENT OF INTERTIA

(cm4)
SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS 76.44 16312 1740522
TSR2 127.40 27185 2900870
TSR3 152.88 32625 3481044
QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392

ALLOWABLE STRESS OF PANEL

Material yield strength of panel σS=345MPa

Material allowable stress [σ]=0.8×σS=276 MPa

Allowable bearing stress [N]= [σ]×F×φ=276×2548×0.751=528kN=54t

Stability factor of chord SSφSS=0.751；DS φDS=0.897

Allowable moment of panel [M]= [N]×h=528×2.134=1127kN·m=115t·m
