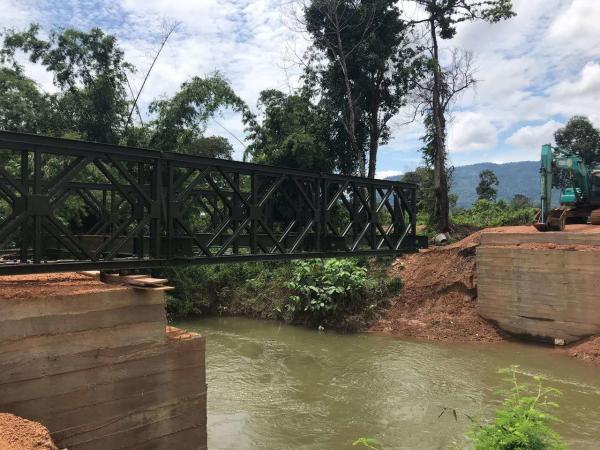

Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard
Specifications
Brand Name :
Tongkai
Model Number :
TK-100
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Delivery Time :
10~30days
Packaging Details :
Packing belt , Steel case
Description

TK-100 Bailey Bridge ----Specification

* Standard : ASTM, GB

* Structure :DSR --Double Row Single Layer Reinforced

* Width: 3.8m,4m,4.2m

* Material : Q355B/S355Jr

* Panel Size : 3000mm/3048 * 1500mm*176mm

* Type : heavy

* Application Scope : Road Construction ; Railway Construction ;

Emergency Usage ; Military Usage :

Introduction:

TK-100 Bailey Bridgeis a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. The bridge has the advantages of few components, light weight and low cost. Bailey bridge is similarly like compact 100,compact 200 International bridge. it is assembled by each 3m panel, and invented by Donald Bailey. TK-100 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins. It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temporary or permanent bridge. Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc.

Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard Bailey bridge ，Compact 100, Single Lane , Painted ,BS standard

Structure 标准结构型 加强结构型

单排

单层

双排

单层

三排

单层

双排

双层

三排

双层

单排

单层

双排

单层

三排

单层

双排

双层

三排

双层
SS DS TS DD TD SSR DSR TSR DDR TDR

M

( kN-m)

 788 1576 2246 3265 4653 1687 3375 4809 6750 9618

Shear

(kN)

 245 490 698 490 698 245 490 698 490 698
