Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Compact 100, Single Lane , Painted , Painted ,Emergency application
Specifications
Brand Name :
Tongkai
Model Number :
TK-100
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T,, Western Union, MoneyGram
Supply Ability :
100 + sets+month
Delivery Time :
10~30days
Packaging Details :
Packing belt , Steel case
Material :
Q355, S355Jr
Width :
3.15m~4.2m
Color :
Red, Green ,Blue
Description

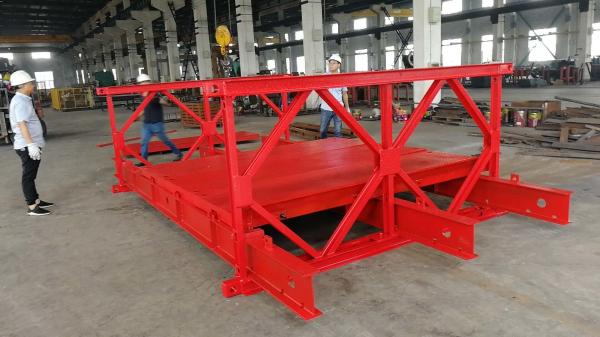

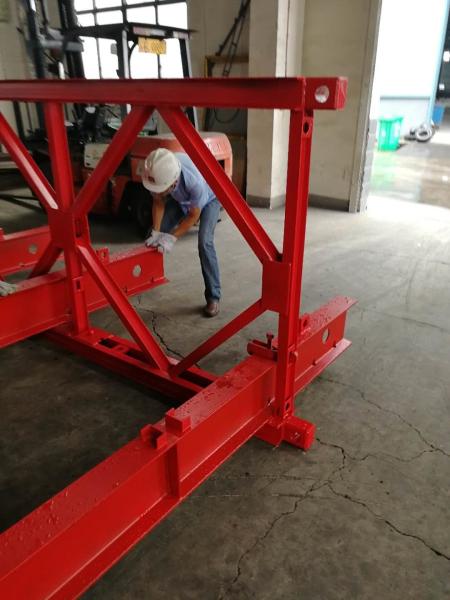

TK-100 Bailey Bridge ----Specification

* Standard : ASTM, GB

* Structure :DSR --Double Row Single Layer Reinforced

* Width: 3.15m , 3.7m,4m,4.2m

* Material : Q355B/S355Jr

* Panel Size : 3000mm/3048 * 1500mm*176mm

* Type : heavy

* Application Scope : Road Construction ; Railway Construction ;

Emergency Usage ; Military Usage :

Introduction:

TK-100 Bailey Bridgeis a standard bridge equipment, adopted extensively and the most popular in the world, possessing the features of simple structure, convenient transport, speedy erection and easy disassembling, while having the advantage of heavy loading capacity, great stability and long fatigue life being capable of an alternative span, loading capacity and mixture form to erect all kinds of Temporary Bridges, Emergency Bridges and Fixed Bridges. The bridge has the advantages of few components, light weight and low cost. Bailey bridge is similarly like compact 100,compact 200 International bridge. it is assembled by each 3m panel, and invented by Donald Bailey. TK-100 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins. It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temporary or permanent bridge. Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc.
