Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
Specifications
Brand Name :
Tongkai
Model Number :
TK200
Certification :
SGS
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 + sets+month
Delivery Time :
15~30days
Packaging Details :
Packing belt , Steel case
Width :
3.15m~7.35m
Span :
9m~60m
Loading :
HS15,HS20-44,HS25-44, HA,HA+HB ....
Surface :
Painted or Galvanzied
Truss Size :
2214mm*3048mm
Material Grade :
S355Jr, S450J0,Gr65,Gr50..
Description

The design of TK200 bailey Bridge allows the system to be used in a logistic role throughout the support area. As a Line of Communication bridge it can carry loads of up to Class 110 over gaps of up to 60m (200ft). The bridge is ideally suited for areas where speed of deployment is vital.

Specification:

* Model : ZB200 bailey bridge ,Double Lane

* Width: 7.35m

* Single Span :9~60m

* Loading : HS15,HS-20-44 ,HS25-44 ,HL93 , HA ,HA+HB, trailers, caterpillers,half-track-vehicle

Features :

• Modular, pre-engineered, pre-fabricated bridge system

• Highly adaptable, fully reusable and re-locatable

• Transported in standard ISO containers

• Quick and simple to build using labour

• Fully galvanized for long life and minimum maintenance

• 3.048m module length

• 4.2m (single lane ), 7.35m (double lane)

• 0.5m ,1m and 1.5m perdestrian footways

• Proprietary steel decking systems to suit different loading requirements

• Durbar finish or factory applied anti-skid surfacing

• Full highway load carrying capability

• Simple, cost effective foundations

DIMENSION:

DIMENSION STANDARD WIDTH EXTRA WIDE DOUBLE LANE
B0 3150 4200 7350
B1 3580 4540 7690
B2 3394 4354 7504
B3 4726 5686 8836
B4 5226 6186 9336
H0 2134 2134 2134
H1 2234 2234 2234
H2 2434 2434 2434
H3 1591 1591 1591
H4 1691 1691 1691
H5 643 643 753
H6 743 743 853
L 816.5 816.5 926.5

Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading, Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading, Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,

Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading, Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading, Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,

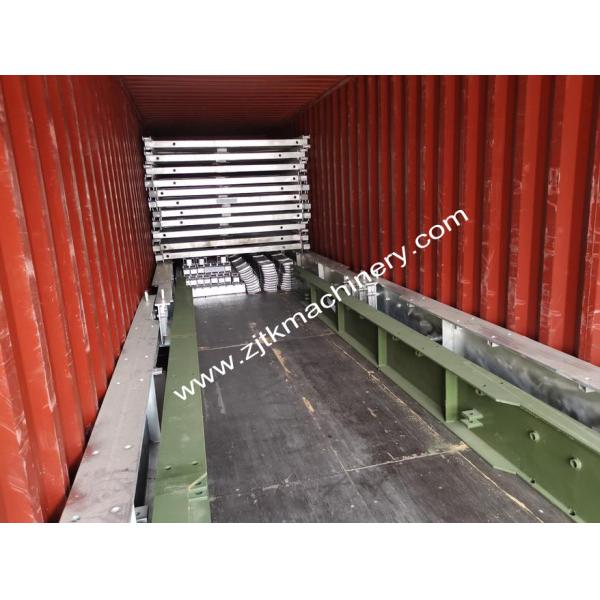

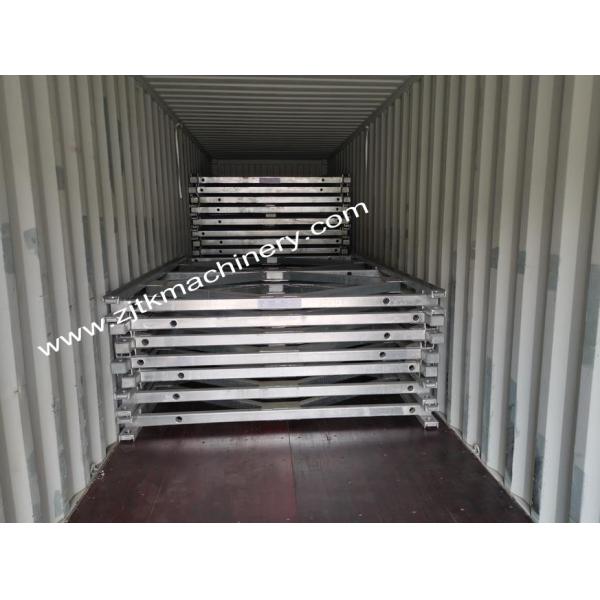

Loading & Shipping

Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading, Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading, Bailey bridge , Compact 200，single lane ,4.2m ,Heavy Loading,
