Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Female 8P8C Keystone RJ45 Connector For Network Cable Extension
Specifications
Brand Name :
TM
Model Number :
TMZT3811SK004207111059
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
100pcs
Price :
Supportive
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray
Product Type  :
RJ45 Modular Keystone Connector
Jack Type :
RJ45
Number of Positions :
8
Terminals per Port :
8
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Description

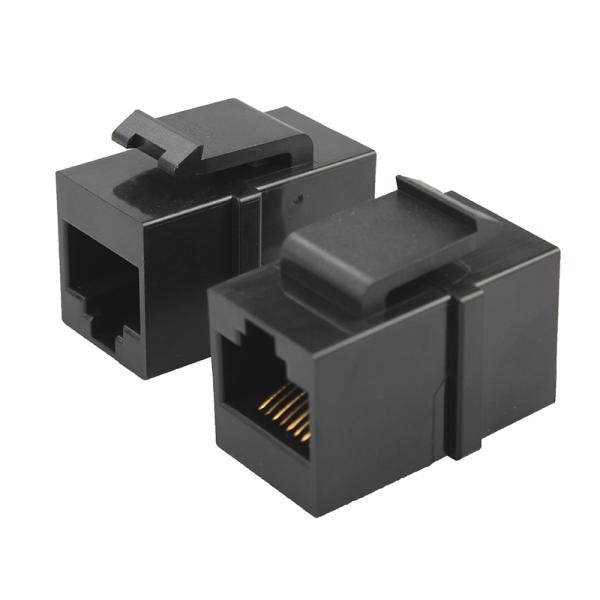

Keystone Rj45 Connector Female/ Female 8P8C For Network Cable Extension

Network Straight Through Coupler to extend the length of patch cords, or use in standard data wallplates to provide feed-through patching. Keystone design allows the coupler to be used as a stand-alone unit, mounted in a faceplate, or blank keystone type patch panel.

Model: TMZT3811SK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Keystone Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN

Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

Female 8P8C Keystone RJ45 Connector For Network Cable Extension

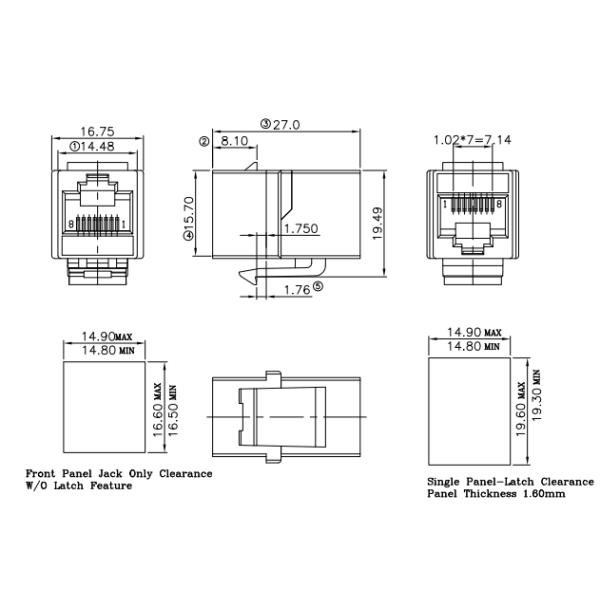

Cat6 RJ45 Coupler Network Modular Drawing:

Female 8P8C Keystone RJ45 Connector For Network Cable Extension
