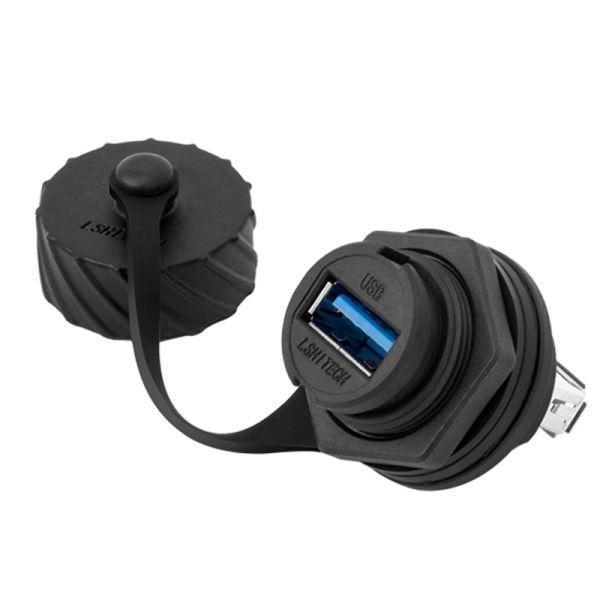

Dustproof AF/AF Female To Female USB 3.0 Coupler
Dustproof AF/AF Female To Female USB 3.0 Coupler
Specifications
Brand Name :
TM
Model Number :
TMZJT020064
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
100pcs
Price :
Supportive
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray
Product Type  :
USB 3.0 AF/AF Coupler
Jack Type :
USB 3.0 AF
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Durrability :
5000CYCLES MIN
Description

USB 3.0 AF/AF Coupler Female To Female Transfer For USB 3.0 Cable Waterproof Dustproof Adapter Industrial Grade

Materials:

Housing : ABS,UL94V-0 ( RoHS )

Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )

Shielding Shell: No shield.

All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

USB 3.0 AF/AF Coupler

One to one Port

Connector Length: 33 mm

Operating Temperature:-20°C~+75°C

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:500V AC

Insulation Resistance:500MΩ

Contact Resistance:30 MΩ

Service life:5000 cycle Min

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required

Dustproof AF/AF Female To Female USB 3.0 Coupler

USB 3.0 AF/AF Coupler (TMZJT020064) Attributes:,

Model: TMZJT020064
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : USB 3.0 AF/AF Coupler
Jack Type: USB 3.0 AF
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 500V AC RMS 50Hz. 1MIN
Durrability: 5000 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year

USB 3.0 AF/AF Coupler (TMZJT020064) Mechnical Drawing:

Dustproof AF/AF Female To Female USB 3.0 CouplerDustproof AF/AF Female To Female USB 3.0 Coupler
