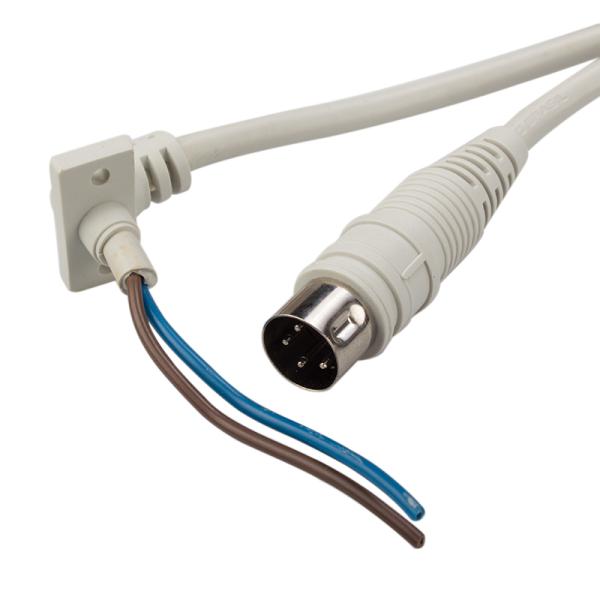

RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
Specifications
Brand Name :
TM
Model Number :
TMCABLE020070
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
100pcs
Price :
Supportive
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray
Product Type  :
Motor Cable Power Cord
Jack Type :
Din Connector Male
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Durrability :
750 CYCLES MIN
Description

Reach/ROHS Din Connector Male 4PIN To 2PIN Cable-Tail White Motor Cable Power Cord To Power the Medical Equipment TMCABLE020070

Motor Cable Power Cord (TMCABLE020070) Attributes:

Model: TMCABLE020070
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : Motor Cable Power Cord
Jack Type: Din Connector Male
Number of Positions : 4
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 300 V
Current rating: 2 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year

RoHS Approved Male 4PIN To 2PIN DIN Connector Cable

Motor Cable Power Cord (TMCABLE020070) Materials:

Din Connector Molding: PVC White

CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P


Motor Cable Power Cord (TMCABLE020070) Product Structure:
Din Connector 4PIN To 2PIN Cable-Tail

1 x 1 Port / Single Port / One Port
Din Connector 4PIN To 2PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:4P4C ( 4 positions 4 contacts )

180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required

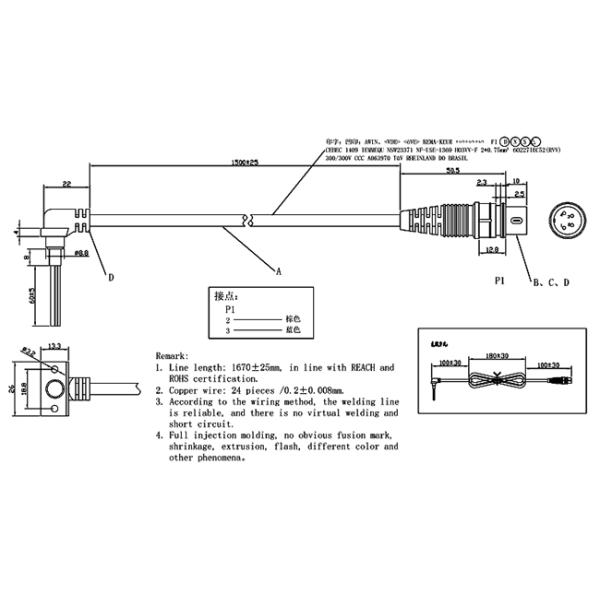

Motor Cable Power Cord (TMCABLE020070) Mechnical Drawing:


RoHS Approved Male 4PIN To 2PIN DIN Connector Cable
