Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
Specifications
Brand Name :
TM
Model Number :
TMCABLE020076
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
100pcs
Price :
Supportive
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray
Product Type  :
Motor Cable Power Cord
Jack Type :
Din Connector Male
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Durrability :
750 CYCLES MIN
Description

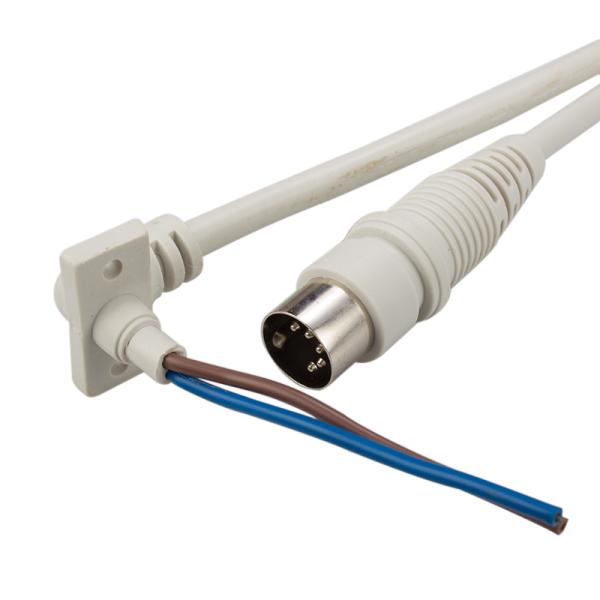

Male 5PIN 180° Din Connector To 2PIN Cable-Tail Power the Medical Equipment White Spring Motor Cable Power Cord

Spring Motor Cable Power Cord (TMCABLE020076) Attributes:

Model: TMCABLE020076
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : Motor Cable Power Cord
Jack Type: Din Connector Male
Number of Positions : 5/6
Terminals per Port: 5/6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 300 V
Current rating: 2 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year

Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment

Spring Motor Cable Power Cord (TMCABLE020076) Materials:

Din Connector Molding: PVC White

CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P


Spring Motor Cable Power Cord (TMCABLE020076) Product Structure:
5PIN Din Connector To 2PIN Cable-Tail

1 x 1 Port / Single Port / One Port
Din Connector 5PIN To 2PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:5P5C ( 5 positions 5 contacts )

180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required

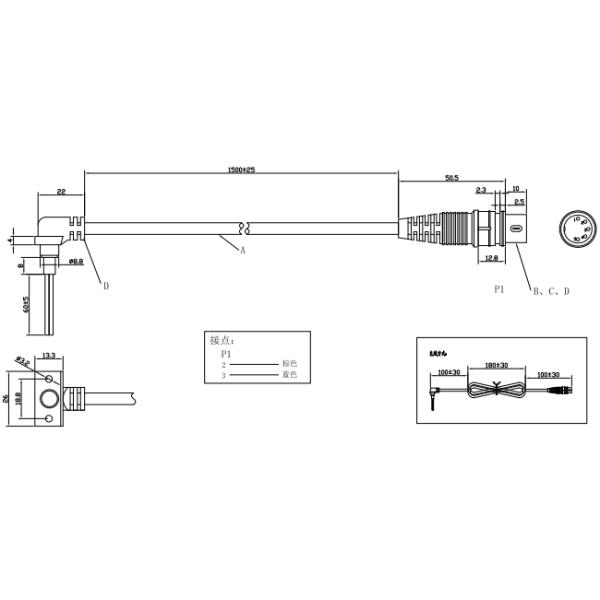

Spring Motor Cable Power Cord (TMCABLE020076) Mechnical Drawing:

Male 5PIN To 2PIN 5P5C DIN Connector Cable Power Cord For Medical Equipment
