Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
Specifications
Brand Name :
TM
Model Number :
TMZT3511SK004207111010
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray,500pcs/case
Jack Type :
RJ11
Number of Positions :
6
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Description

Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port

6 Positions 6 Contacts RJ11 Modular Connector 180 ° Orientation One To One Port

180°Orientation One to one Port 6 positions 6 contacts RJ11 Modular Connector Without Transformer TMZT3511SK004207111010

180°Orientation RJ11 Modular Connector Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

180°Orientation RJ11 Modular Connector Product Structure:
RJ11 Modular Jack
One to one Port
Connector Length: 26.96 mm
Connector Width: 14.48 mm
Connector Height: 16.13 mm
Termimal Solder Pin Length: 0 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

180°Orientation RJ11 Modular Connector Attributes:,

Model:TMZT3511SK004207111010
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ11 Modular Connector
Jack Type:RJ11
Number of Positions :6
Terminals per Port:6
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:5KK/year

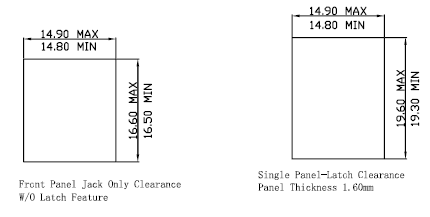

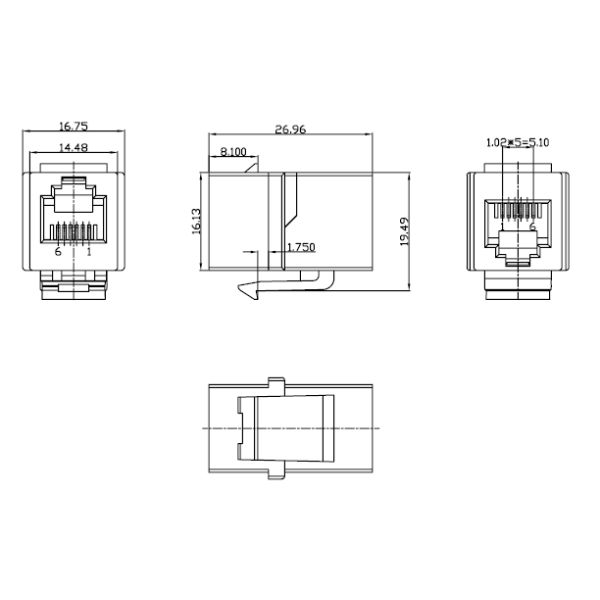

180°Orientation RJ11 Modular Connector Mechnical Drawing:

Rohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One PortRohs Reach RJ11 6P6C Connector 180 Degree Orientation One To One Port
