90 Degree RJ45 Cable Coupler Female To Female Straight Extension
90 Degree RJ45 Cable Coupler Female To Female Straight Extension
90 Degree RJ45 Cable Coupler Female To Female Straight Extension
90 Degree RJ45 Cable Coupler Female To Female Straight Extension
90 Degree RJ45 Cable Coupler Female To Female Straight Extension
90 Degree RJ45 Cable Coupler Female To Female Straight Extension
Specifications
Brand Name :
tmulink
Model Number :
TMZT8811SX004211111000
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
100pcs/bag
Number of Positions :
8
Terminals per Port :
8
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Description

90 degree RJ45 Female to Female straight extension adapter


RJ45 Female to Female adapter (TMZT8811SX004211111000) Materials:
Housing:PBT,BLACK,UL94V-0
Contact material:OD=0.46mm gold plating with over nickel( RoHS )
Gold plating:1.5u” Optional
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


RJ45 Female to Female adapter (TMZT8811SX004211111000) Product Structure:


RJ45 Modular Jack
One to one Port
Connector Length: 30.6 mm
Connector Width: 14.4 mm
Connector Height: 16.0 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Female to Female adapter (TMZT8811SX004211111000) Attributes:

Model: TMZT8811SX004211111000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 100pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year

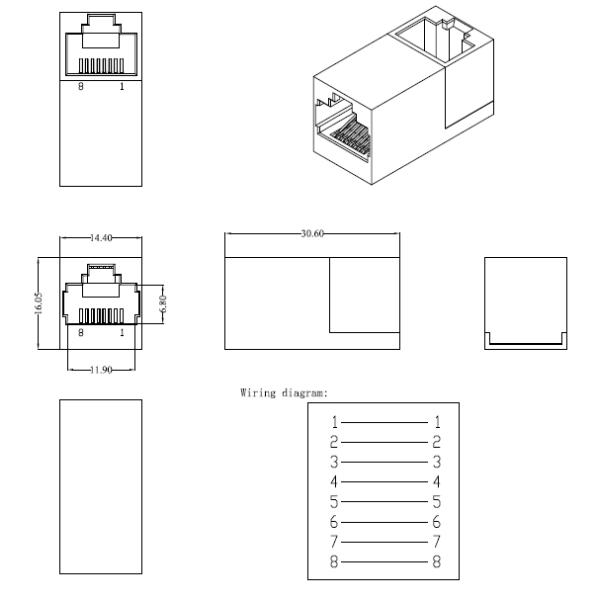

RJ45 Female to Female adapter ( TMZT8811SX004211111000) Drawing:

90 Degree RJ45 Cable Coupler Female To Female Straight Extension
