Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
Specifications
Brand Name :
tmulink
Model Number :
TMZT5811EK004207111059
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray,500pcs/case
Voltage rating :
125 V
Current rating :
1.5 A
Product Type :
RJ45 Modular Connector
Jack Type :
RJ45
Number of Positions :
8
Terminals per Port :
8
LED Option :
No
Shielded EMI Tabs :
No
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Description

Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059

Cat6 RJ45 Keystone Adapter Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: Stainless Steel.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Cat6 RJ45 Keystone Adapter Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


Cat6 RJ45 Keystone Adapter (TMZT5811EK004207111059) Attributes:

Model: TMZT5811EK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year

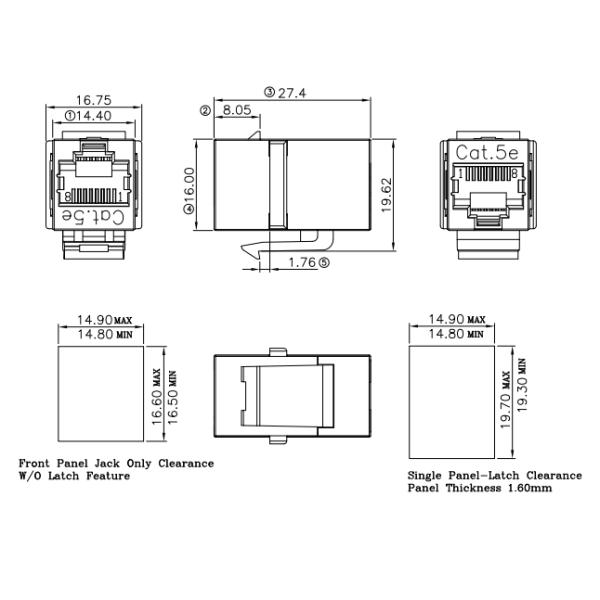

Cat6 RJ45 Keystone Adapter (TMZT5811EK004207111059) Mechnical Drawing:

Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059Cat5e RJ45 Keystone Jack Female-Female Adapter For Network Ethernet Cable TMZT5811EK004207111059
