Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
Specifications
Brand Name :
tmulink
Model Number :
TMZTC811EK007208111010
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
50pcs/tray,1000pcs/carton
Contact resistance :
30mΩ
Number of Positions :
8
Product Type :
RJ45 Modular Connector
Jack Type :
RJ45
Terminals per Port :
8
LED Option :
No
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5A
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Description

Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle

Cat6e Single Port Metal Shielded Rj45 adapter ,8p8c Right Angle RJ45 keystone jack


RJ45 keystone jack(TMZTC811EK007208111010) Product Structure:
RJ45 keystone jack
1 x 1 Port / Single Port / One Port
Connector Length: 31.20 mm
Connector Width: 14.4 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 keystone jack(TMZTC811EK007208111010) Attributes:

Model: TMZTC811EK007208111010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 keystone jack
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 50pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year

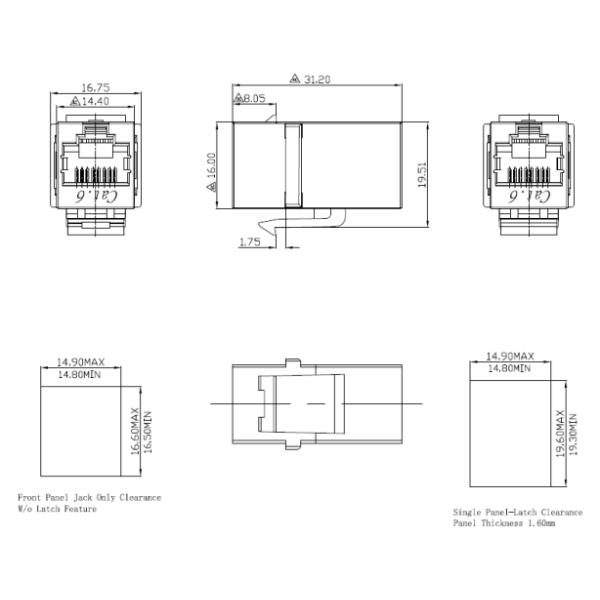

RJ45 keystone jack(TMZTC811EK007208111010) Mechnical Drawing:

Cat6e Single Port RJ45 Cable Coupler Metal Shielded 8p8c Right Angle
