8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
Specifications
Brand Name :
TM
Model Number :
TM52S811SXX31
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500K/year
Delivery Time :
20 Days
Packaging Details :
100pcs/tray
Jack Type :
RJ45 PLUG
Number of Positions :
8
Terminals per Port :
8
Shielded EMI Tabs :
No
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Description

SMT 1X1 RJ45 8P8C Connector without Integrated Magnetics ,unshield,,wihtout LED,Tab Up,RoHS TM52S811SXX31

Materials:


Housing : LCP,BLACK,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 3U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: NO Shield
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Connector Length: 14.0 mm
Connector Width: 15.60 mm
Connector Height: 12.8 mm
Termimal Solder Pin Length: 2.6 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM52S811SXX31) Attributes:

Model: TM52S811SXX31
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45 PLUG
Number of Positions : 8
Terminals per Port: 8
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Delivery Time: 20 Days
Supply Ability: 5KK/year

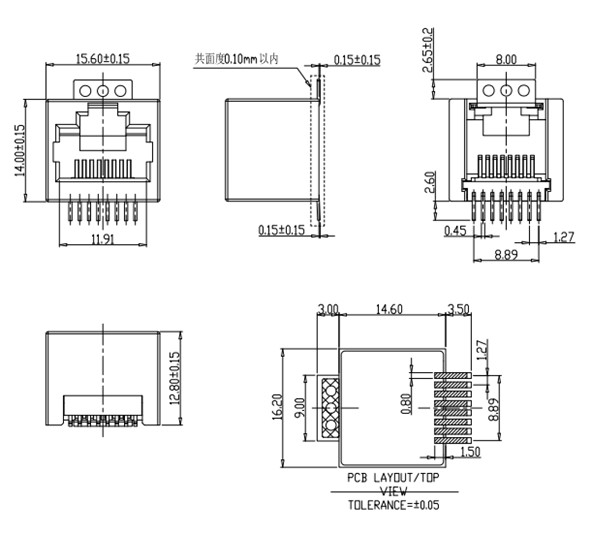

RJ45 Female Connector (TM52S811SXX31) Mechnical Drawing:

8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
8P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX318P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX318P8C RJ45 Ethernet Jack No LED Tab Up 1.5 A Current Rating RoHS TM52S811SXX31
