Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118
Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118
Specifications
Brand Name :
TM
Model Number :
TMX21W08DIJ135118
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20kkports/month
Delivery Time :
15 working days
Packaging Details :
Tray
Model Numbe :
TMX21W08DIJ135118
LENGTH :
38.3mm
HOUSING MATERIAL :
PBT UL94V-0
CONTACT MATING AREA PLATING :
GOLD 30U'' PLATING
CONNECTOR TYPE :
RJ45
CONNECTOR MATERIAL COLOR :
BLACK
LED OPTION :
LEFT GN/OR,RIGHT OR
NUMBER OF PORTS :
2X1
NUMBER OF CONTACTS :
10
GROUNDING OPTIONS :
Panel Ground and PCB Ground
SHIELD PLATING MATERIAL :
NICKEL
SHIELD EMI TABS :
YES
SHIELD :
YES
ROHS COMPLIANT :
YES
PANEL STOP :
YES
PCB MOUNT ANGLE :
SIDE ENTRY
PACKAGE :
DIP
CONNECTOR & CONTACT TERMINAATES TO :
Printed Circuit Board
LATCH ORIENTATION :
LATCH DOWN-UP
Description

Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI For Industrial Magnetic TMX21W08DIJ135118

Yong Lian (tianmu)Electronics Limited is a pofessional engaged in Network Conector development and manufacturin design, development, poducton and sales of dversitled manutacturer. Ater years of hard devolopment, company has acumulated rich expriene and tchnolgy products by the majority of coustomers praise.

The leading products of the company include: phone jack, network sockets,networktransformers, crystal head, telephone, network peripheral cable adapter first class.

The product widerly used in indstry control,network switch,routers, set top boxes,digital dquipment and telephone&network equipment. The company had under control a large number of employees continuously seeking after improvements and practiced a set of perfect quality management systerm.To make every effort to provide the customer with the best quality and service, and continuously improve

the comprehensive quality of enterprise.


RJ45 Without Transformer (TMX21W08DIJ135118) Attributes:

Model Number TMX21W08DIJ135118
LENGTH 38.3mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 30U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN/OR,RIGHT OR
NUMBER OF PORTS 2X1
NUMBER OF CONTACTS 10
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION

LATCH DOWN-UP

RJ45 Female Connector (TMX21W08DIJ135118) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

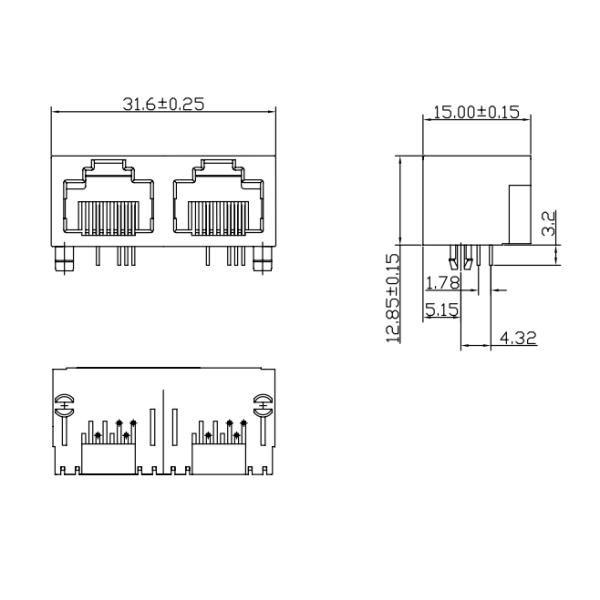

RJ45 Female Connector (TMX21W08DIJ135118) Mechnical :

Drawing:

Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118

Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118

Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118

Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118

Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118Multi-Port Stacked 2X1 10 Gigabit Ethernet RJ45 Connector 10G Base TMX21W08DIJ135118
