Industrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet Connector
Industrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet Connector
Specifications
Brand Name :
TM
Model Number :
TM411W07DIA117007
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20kkports/month
Delivery Time :
15 working days
Packaging Details :
Tray
Model Numbe :
TM411W07DIA117007
LENGTH :
32.5mm
HOUSING MATERIAL :
PBT UL94V-0
CONTACT MATING AREA PLATING :
GOLD 6U'' PLATING
CONNECTOR TYPE :
RJ45
CONNECTOR MATERIAL COLOR :
BLACK
LED OPTION :
LEFT GN-OR,RIGHT YE
NUMBER OF PORTS :
1X1
NUMBER OF CONTACTS :
12
GROUNDING OPTIONS :
Panel Ground and PCB Ground
SHIELD PLATING MATERIAL :
NICKEL
SHIELD EMI TABS :
YES
SHIELD :
YES
ROHS COMPLIANT :
YES
PANEL STOP :
YES
PCB MOUNT ANGLE :
SIDE ENTRY
PACKAGE :
DIP
CONNECTOR & CONTACT TERMINAATES TO :
Printed Circuit Board
LATCH ORIENTATION :
LATCH UP
Description

Customized 10G RJ45 Connector 32.5mm Length With EMI Spring Protection TM411W07DIA117007

RJ45 Without Transformer (TM411W07DIA117007) Attributes:

Model Number TM411W07DIA117007
LENGTH 32.5mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN-OR,RIGHT YE
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 12
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH UP

RJ45 Female Connector (TM411W07DIA117007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

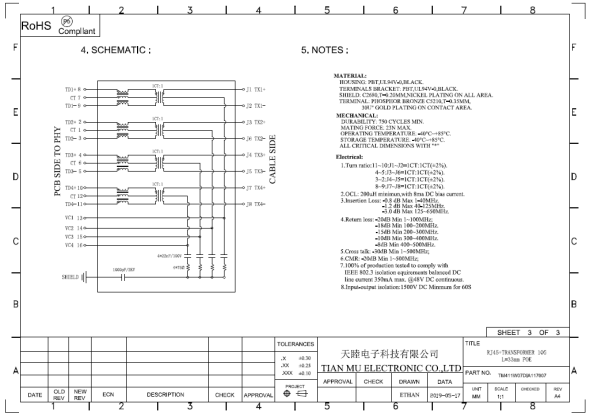

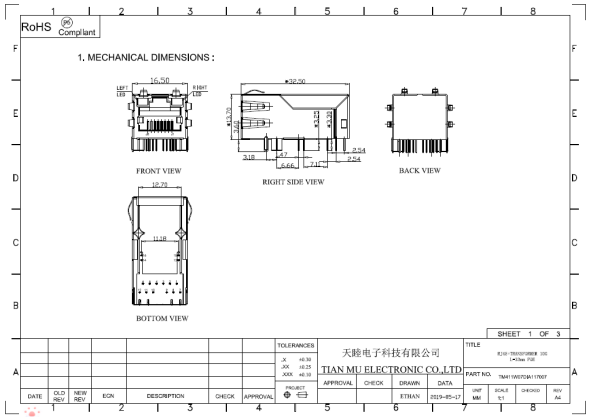

RJ45 Female Connector (TM411W07DIA117007) Mechnical Drawing:

Industrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet ConnectorIndustrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet ConnectorIndustrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet Connector
