UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
Specifications
Brand Name :
TM
Model Number :
TMUKF311SXX13
Certification :
UL,Rohs,Reach,ISO9001
Place of Origin :
Guangdong of China
MOQ :
500/1000/2000 pcs
Price :
Supportive
Payment Terms :
T/T, Western Union, ,Paypal
Supply Ability :
500K/year
Delivery Time :
15 Days
Packaging Details :
100pcs/tray
LED Option :
No
Product Type  :
RJ11 Modular Connector
Shielded EMI Tabs :
No
Jack Type :
RJ11
Number of Positions :
6
Terminals per Port :
2
Voltage rating :
125 V
Current rating :
1.5 A
Contact resistance :
30mΩ
Insulation resistance :
500 MΩ MIN @ 500V DC
Dielectric resistance :
1000V AC RMS 50Hz. 1MIN
Durrability :
750 CYCLES MIN
Minimal Order :
1pcs
Description

UK Telephone RJ11 PCB modular jack

1. Product Structure:

RJ11 Modular Jack

1 x 1 Port / Single Port / One Port

Connector Length: 17.4 mm

Connector Width: 15.9 mm

Connector Height: 11.6 mm

Termimal Solder Pin Length: 3.5 mm

6P2C ( 6 positions 2 contacts )

90°Orientation

We Support Custom service as required

2. RJ11 Without Transformer (TMUKF311SXX13) Attributes:

Model: TMUKF311SXX13
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 2
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Supply Ability: 5KK/year

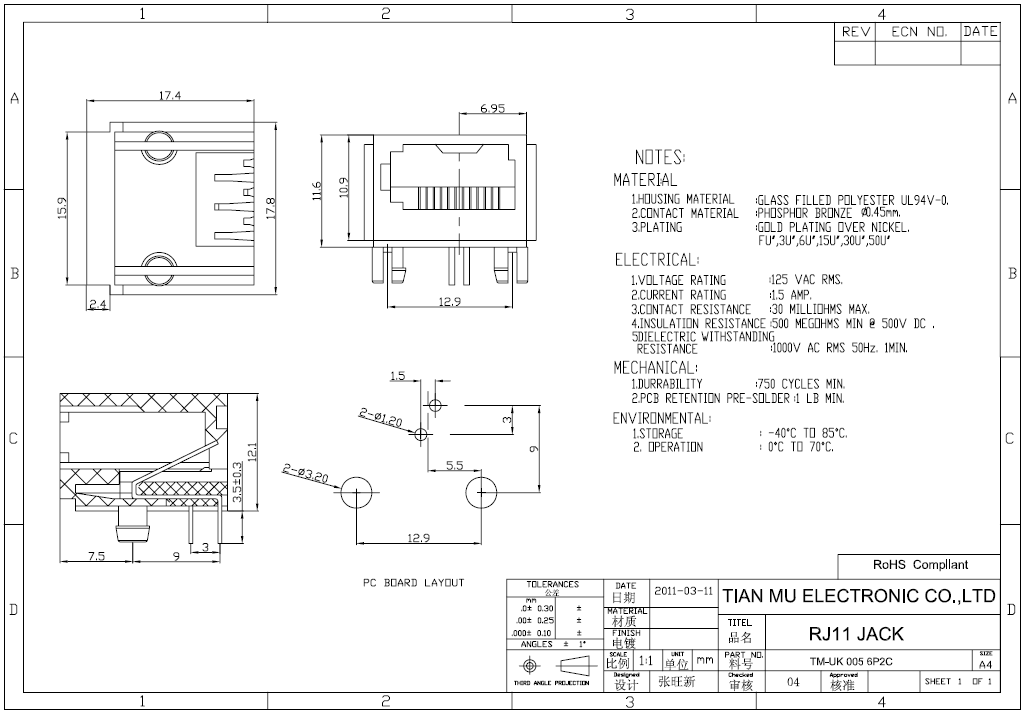

RJ11 Female Connector (TMUKF311SXX13) Mechnical Drawing:

UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance

UK Telephone Modular RJ11 PCB Jack With High Insulation ResistanceUK Telephone Modular RJ11 PCB Jack With High Insulation ResistanceUK Telephone Modular RJ11 PCB Jack With High Insulation ResistanceUK Telephone Modular RJ11 PCB Jack With High Insulation ResistanceUK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
