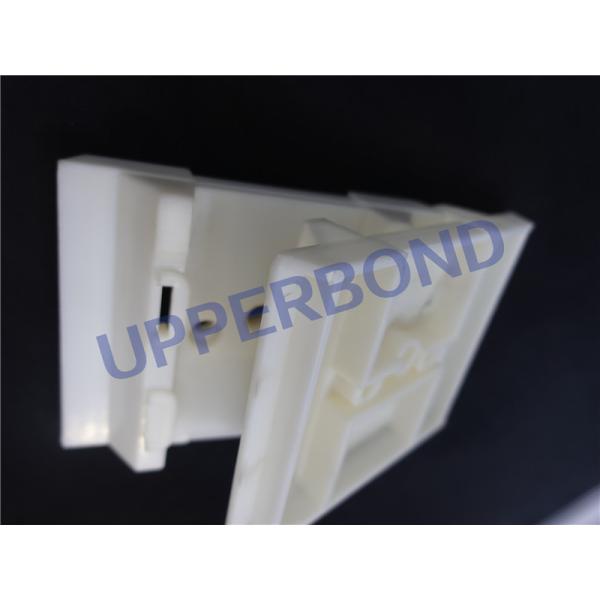

Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
Specifications
Brand Name :
Upperbond
Model Number :
Maker
Certification :
CE, ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 days
Packaging Details :
Carton
Hardness :
Greatly Enhanced
Cigarette Diameter :
5.4mm - 8.0mm
Cutting Material :
Filter Side
Material :
Treated stainless steel
Port of Shipment :
Guangzhou, Shanghai
Machine Models :
Protos, Passim, MK8, MK9,
Description

Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts

Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.

Catalog Reference

Item Catalog No. Part No. Qty.
1 YB43A 4.3.1-8 locking screw 2
2 YB43A 4.4.1-2 spring 4
3 YB43A 4.4.1-3 Spring pin 4
4 YB43A 4.3.1-7 key 1
5 YB43A 4.3.1-4 locking nut 2
6 YB43A 4.4.1-15 key 1
7 YB43A 4.3.2-4 upper mover 72
8 YB43A 4.3.2-11 box eJector 36
9 YB43A 4.3.2-12 pressedblock 36
10 YB43A 4.3.2-13 guide plate 36
11 YB43A 4.4.1-14 belt wheel 1
12 YB43A 4.4.1-23 tension wheel shaft 1
13 YB43A 4.3.2-6 flange 1
14 YB43A 4.4.1-22 tension wheel shaft 2
15 YB43A 4.4.1-6 press plate 1
16 YB43A 4.3.1-43 plug 1
17 YB43A 4.3.1-45 cover 1
18 YB43A 4.3.1-6 graduation cam 1
19 YB43A 4.3.2-10 toothed belt wheel 1
20 YB43A 4.3.1-3 nylon plug 2
21 YB43A 4.3.2-8 spacer 1
22 YB43A 4.4.1-5 shaft 2
23 YB43A 4.3.1-44 bearing case 1
24 YB43A 4.3.1-5 washer against slackness 2
25 YB43A 4.4.1-20 tension wheel 2
26 YB43A 4.4.1-18 tension wheel shaft 1
27 YB43A 4.4.1-21 bracket 1
28 YB43A 4.3.2-5 groove tray 72
29 YB43A 4.4.1-11 front shell 1
30 YB43A 4.4.1-1 lock block 1
31 YB43A 4.3.2-16 bearing case 2
32 YB43A 4.3.1-1 shaft 1
33 YB43A 4.3.2-2 belt wheel 1
34 YB43A 4.4.1-13 sleeve 1
35 YB43A 4.3.2-9 clamping plate 1
36 YB43A 4.4.1-16 cam 1
37 YB43A 4.4.1-4 plate 1
38 YB43A 4.3.2-3 wheel shaft 1
39 YB43A 4.3.2-1 flange 24
40 YB43A 4.3.2-15 regulating block 2
41 YB43A 4.4.1-25 tension wheel pedestal 1
42 YB43A 4.4.1-7 support block 1
43 YB43A 4.4.1-17 tension wheel 3
44 YB43A 4.4.1-12 back shell 1
45 YB43A 4.4.1-10 driving shaft 1
46 YB43A 4.3.2-14 guide tray 36
47 YB43A 4.4.1-8 block 1
48 YB43A 4.4.1-9 cylinder 1
49 YB43A 4.4.1-24 tension wheel pedestal 1
50 YB43A 4.4.1-19 tension wheel shaft 1

Regular Kretek Hard Printer Mould Pocket Cigarette Packing Machine Parts
