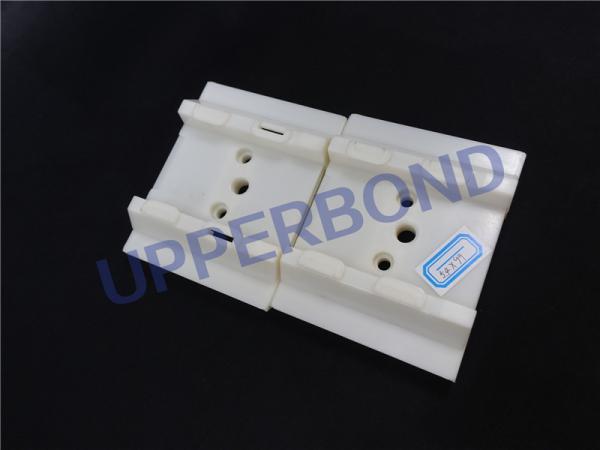

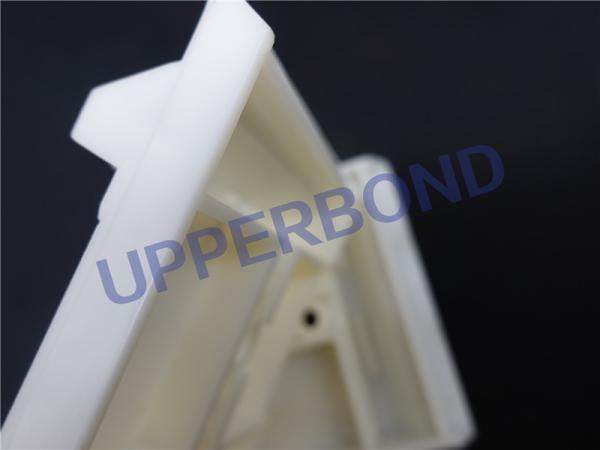

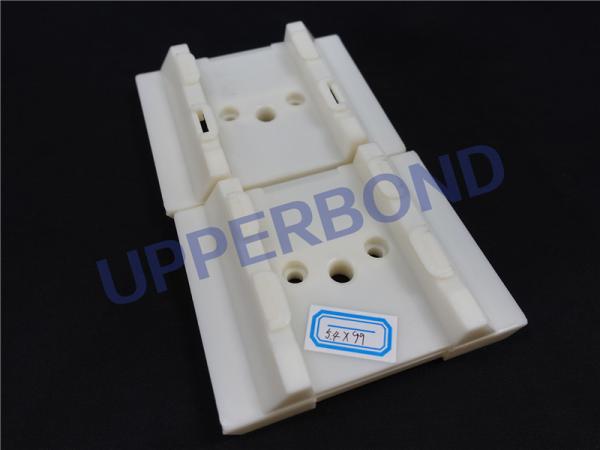

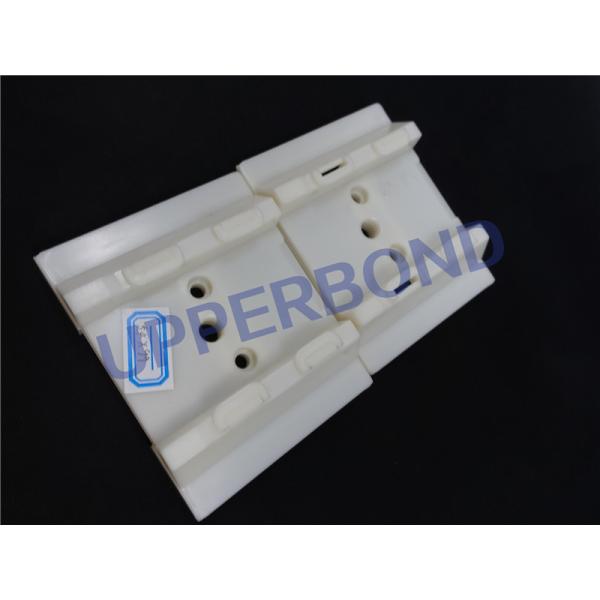

King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
Specifications
Brand Name :
Upperbond
Model Number :
Maker
Certification :
CE, ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 days
Packaging Details :
Carton
Material :
Treated stainless steel
Cutting Material :
Filter Side
Cigarette Diameter :
5.4mm - 8.0mm
Port of Shipment :
Guangzhou, Shanghai
Machine Models :
Protos, Passim, MK8, MK9,
Hardness :
Greatly Enhanced
Description

King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts

Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.

Catalog Reference

Item Catalog No. Part No. Qty.
1 YB43A 4.3.2-4 upper mover 72
2 YB43A 4.3.1-6 graduation cam 1
3 YB43A 4.4.1-5 shaft 2
4 YB43A 4.3.1-44 bearing case 1
5 YB43A 4.3.2-5 groove tray 72
6 YB43A 4.3.1-3 nylon plug 2
7 YB43A 4.3.2-8 spacer 1
8 YB43A 4.3.1-7 key 1
9 YB43A 4.3.2-16 bearing case 2
10 YB43A 4.4.1-6 press plate 1
11 YB43A 4.4.1-23 tension wheel shaft 1
12 YB43A 4.3.2-10 toothed belt wheel 1
13 YB43A 4.3.2-3 wheel shaft 1
14 YB43A 4.4.1-1 lock block 1
15 YB43A 4.4.1-24 tension wheel pedestal 1
16 YB43A 4.4.1-11 front shell 1
17 YB43A 4.3.1-1 shaft 1
18 YB43A 4.4.1-13 sleeve 1
19 YB43A 4.4.1-14 belt wheel 1
20 YB43A 4.3.1-4 locking nut 2
21 YB43A 4.4.1-15 key 1
22 YB43A 4.4.1-2 spring 4
23 YB43A 4.4.1-12 back shell 1
24 YB43A 4.3.2-1 flange 24
25 YB43A 4.4.1-7 support block 1
26 YB43A 4.4.1-10 driving shaft 1
27 YB43A 4.4.1-3 Spring pin 4
28 YB43A 4.3.2-6 flange 1
29 YB43A 4.4.1-4 plate 1
30 YB43A 4.3.2-9 clamping plate 1
31 YB43A 4.4.1-20 tension wheel 2
32 YB43A 4.3.1-43 plug 1
33 YB43A 4.4.1-21 bracket 1
34 YB43A 4.4.1-17 tension wheel 3
35 YB43A 4.3.1-45 cover 1
36 YB43A 4.3.2-2 belt wheel 1
37 YB43A 4.4.1-25 tension wheel pedestal 1
38 YB43A 4.4.1-16 cam 1
39 YB43A 4.4.1-8 block 1
40 YB43A 4.4.1-9 cylinder 1
41 YB43A 4.4.1-18 tension wheel shaft 1
42 YB43A 4.3.2-14 guide tray 36
43 YB43A 4.3.1-8 locking screw 2
44 YB43A 4.4.1-22 tension wheel shaft 2
45 YB43A 4.3.2-11 box eJector 36
46 YB43A 4.3.2-12 pressedblock 36
47 YB43A 4.3.2-13 guide plate 36
48 YB43A 4.3.1-5 washer against slackness 2
49 YB43A 4.3.2-15 regulating block 2
50 YB43A 4.4.1-19 tension wheel shaft 1

King Size Cigarette Printer Mould Pocket Tobacco Machinery Spare Parts
