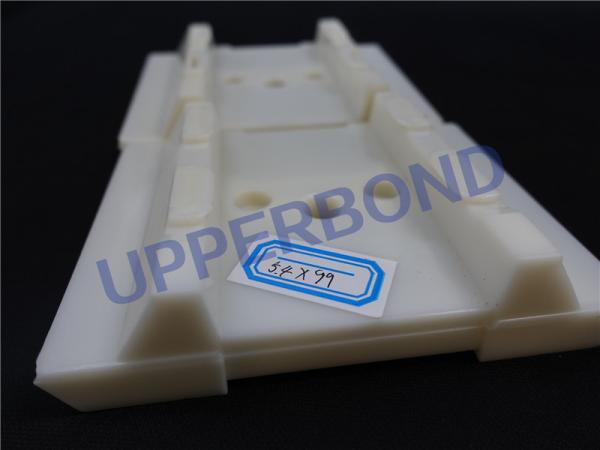

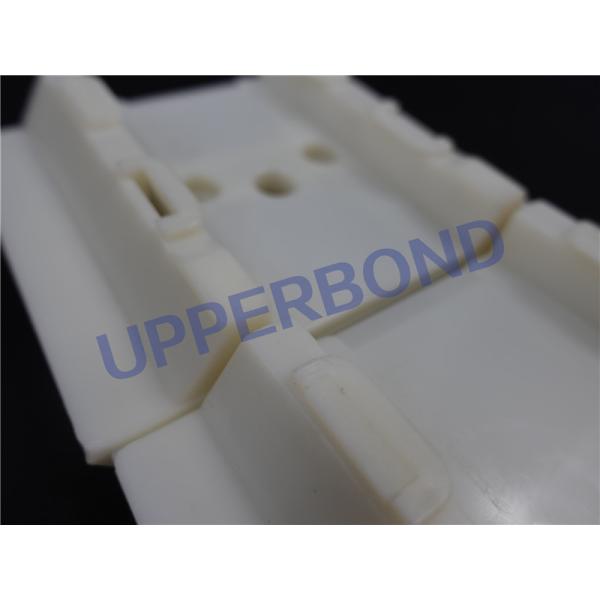

Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
Specifications
Brand Name :
Upperbond
Model Number :
Maker
Certification :
CE, ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 days
Packaging Details :
Carton
Other Models :
Skoda, CME, Sasib
Port of Shipment :
Guangzhou, Shanghai
Sea transportation :
With larger orders only
Customizable :
Positive
Machine Models :
Protos, Passim, MK8, MK9,
Cigarette Diameter :
5.4mm - 8.0mm
Description

Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts

Cigarette Pack Pocket is a fast moving part of packing machine where printed hard cardboard paper will be folded into shape of cigarette packs.

Catalog Reference

Item Catalog No. Part No. Qty.
1 YB43A 4.3.2-5 groove tray 72
2 YB43A 4.3.1-3 nylon plug 2
3 YB43A 4.3.2-8 spacer 1
4 YB43A 4.3.1-7 key 1
5 YB43A 4.3.2-4 upper mover 72
6 YB43A 4.3.1-6 graduation cam 1
7 YB43A 4.4.1-5 shaft 2
8 YB43A 4.3.1-44 bearing case 1
9 YB43A 4.3.2-16 bearing case 2
10 YB43A 4.4.1-6 press plate 1
11 YB43A 4.4.1-23 tension wheel shaft 1
12 YB43A 4.4.1-24 tension wheel pedestal 1
13 YB43A 4.4.1-11 front shell 1
14 YB43A 4.3.1-1 shaft 1
15 YB43A 4.4.1-13 sleeve 1
16 YB43A 4.4.1-14 belt wheel 1
17 YB43A 4.3.2-10 toothed belt wheel 1
18 YB43A 4.3.2-3 wheel shaft 1
19 YB43A 4.4.1-1 lock block 1
20 YB43A 4.3.1-4 locking nut 2
21 YB43A 4.4.1-15 key 1
22 YB43A 4.4.1-2 spring 4
23 YB43A 4.4.1-10 driving shaft 1
24 YB43A 4.4.1-3 Spring pin 4
25 YB43A 4.3.1-8 locking screw 2
26 YB43A 4.4.1-22 tension wheel shaft 2
27 YB43A 4.3.2-11 box eJector 36
28 YB43A 4.3.2-12 pressedblock 36
29 YB43A 4.3.2-13 guide plate 36
30 YB43A 4.3.1-5 washer against slackness 2
31 YB43A 4.3.2-6 flange 1
32 YB43A 4.4.1-4 plate 1
33 YB43A 4.3.2-9 clamping plate 1
34 YB43A 4.4.1-20 tension wheel 2
35 YB43A 4.4.1-12 back shell 1
36 YB43A 4.3.2-1 flange 24
37 YB43A 4.4.1-7 support block 1
38 YB43A 4.3.1-43 plug 1
39 YB43A 4.4.1-21 bracket 1
40 YB43A 4.4.1-17 tension wheel 3
41 YB43A 4.4.1-8 block 1
42 YB43A 4.4.1-9 cylinder 1
43 YB43A 4.4.1-18 tension wheel shaft 1
44 YB43A 4.3.2-14 guide tray 36
45 YB43A 4.3.1-45 cover 1
46 YB43A 4.3.2-2 belt wheel 1
47 YB43A 4.4.1-25 tension wheel pedestal 1
48 YB43A 4.4.1-16 cam 1
49 YB43A 4.3.2-15 regulating block 2
50 YB43A 4.4.1-19 tension wheel shaft 1

Queen Size Cigarette Pack Die Pocket Cigarette Packing Machine Parts
