BS 4504 316L Plate Flange DN50 PN10

Quick Details

Packaging & Delivery

Specifications

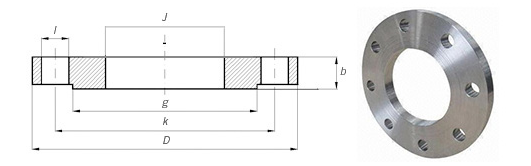

BS 4504 316L Plate Flange
1. Material: Stainless Steel 316L, etc
2. Size: 2" (DN50)
3. Standard: BS, etc

4. Pressure: PN6, PN10, PN16, PN25, PN40, PN64, etc
BS 4504: British Standard BS 4504 : Section 3.1 : 1989 - Circular Flanges for Pipes, Valves and Fittings (PN Designated), Specification for Steel Flanges. This covers flanges in nominal pressure ranges PN 2.5 to PN 40 and nominal sizes up to DN 4000 (see table below). BS 4504 substantially agrees with ISO 7005-1 : 1992 (E) Part 1 : Steel Flanges.
BS 4504 : 1969 is still commonly used. This older standard allows for manufacture from bar, whereas the latest standard specifies that forging or plate are to be used, which can be significantly more expensive. There are minor differences in dimensions between the two versions. The following tables are based on the later version.
A bs 4504 316l plate flange is a flat, circular disk that is welded onto the end of a pipe and allows it to be bolted to another pipe. Typically used in fuel and water pipelines, the two plate flanges will be bolted together with a gasket in between them. The plate flange will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
Plate flanges are fabricated mainly from quality mill steel plates. They are similar to slip on flange but without the hub and also require two fillet welds. Mostly the plate flanges are produced in accordance with DIN, JIS, UNI, BS or GOST standards.
When building a pipeline, the length of the pipes used are not always known. By manufacturing the pipes separate from the plate flanges, the welders can cut the pipes to length and weld a plate flanges in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.

Composition

Table 1. Composition ranges for 316L stainless steel.

Mechanical Properties

Table 2. Mechanical properties of 316L stainless steel.

Grade Specification Comparison

Table 4. Grade specifications for 316L stainless steel.

APPLICATIONS:
1. Petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;
Plate flange is most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
